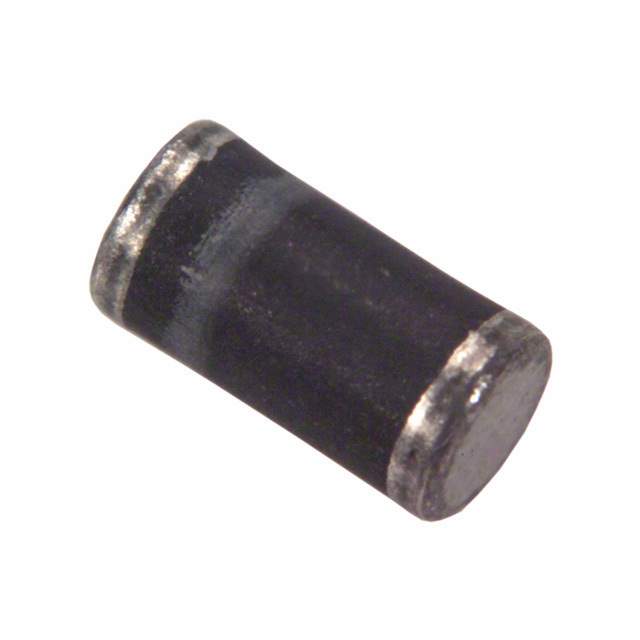

The ZM4738A-13 is a high-quality silicon planar power Zener diode designed and manufactured by Diodes Incorporated, a leading company in the semiconductor market. This particular diode is well-suited for providing voltage regulation in a vast array of electronic applications, thanks to its reliable performance and robust design.

Key Features

• Nominal Zener Voltage: The ZM4738A-13 offers a nominal Zener voltage of 5.6V, making it ideal for applications that require a precise voltage reference.
• Power Dissipation: With a power dissipation of 1W, this diode can handle significant energy, making it suitable for more demanding circuits.
• Package: Encased in a DO-41 package, the ZM4738A-13 is designed for through-hole mounting, which provides a secure and reliable connection for printed circuit boards (PCBs).
• Tolerance: The Zener voltage tolerance is ±5%, allowing for a stable voltage supply within a defined margin.
• Operating Temperature: It can operate over a wide temperature range from -55°C to +150°C, ensuring consistent performance under various environmental conditions.

Applications

The ZM4738A-13 is versatile and can be used in multiple applications including:

• Voltage regulation modules
• Overvoltage protection circuits
• Switching power supplies
• Other types of electronic circuits requiring a stable Zener voltage

Quality and Reliability

Diodes Incorporated is known for its commitment to quality, and the ZM4738A-13 is no exception. Each diode is subjected to rigorous testing and quality control measures to ensure it meets the high standards expected from Diodes Incorporated products. Customers can trust the ZM4738A-13 for consistent performance and durability in their electronic designs.

Ordering Information

The ZM4738A-13 is available for order in bulk quantities, and Diodes Incorporated provides detailed datasheets and technical support to assist with any design or application questions. Ensure your electronic projects have the reliable voltage control they need with the ZM4738A-13 Zener diode.
