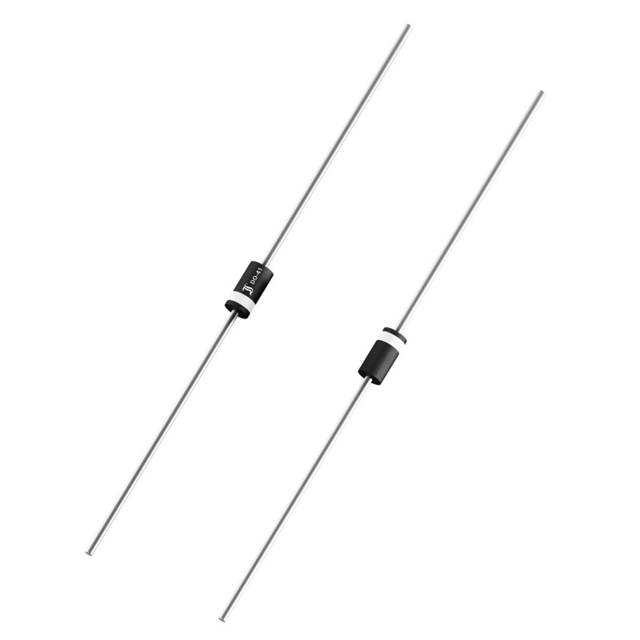

1N4007-13 Real Image
Same model may have multiple batches, images only for reference.

1N4007-13

Part No 1N4007-13
Manufacturer DIOTEC Electronics Corporation
Catalog Diodes, Rectifiers - Single
Description ST Rect, 1300V, 1A  /  Diode Standard 1300 V 1A Through Hole DO-41/DO-204AC
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Diotec Semiconductor
Package Tape & Reel (TR)
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 1300 V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 1 A
Speed Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) 1.5 µs
Current - Reverse Leakage @ Vr 5 µA @ 1.3 kV
Mounting Type Through Hole
Package / Case DO-204AC, DO-41, Axial
Supplier Device Package DO-41/DO-204AC
Operating Temperature - Junction -50°C ~ 175°C
RoHS Status RoHS non-compliant
MSL Level Not Applicable
REACH Status REACH info available upon request
HTSUS 8541.10.0000
Other Names 2721-1N4007-13TR
Standard Package 30
Win Source Part Number 1211105-1N4007-13
Ultra Librarian 3D Model Ultra Librarian 1N4007-13 CAD Model

Description

This electronic component is a standard diode rectifier that can handle an average rectified current of 1A and a maximum reverse voltage of 1300V.

  • Average Rectified Current: 1A
  • Maximum Reverse Voltage: 1300V
  • Forward Voltage Drop: 1.1V @ 1A
  • Reverse Recovery Time: 1.5 microseconds
  • Reverse Leakage Current: 5 microamperes @ 1.3 kV
  • Operating Temperature Range: -50 to 175 degrees Celsius
  • Package Type: DO-204AC, DO-41, Axial
  • Supplier Device Package: DO-41/DO-204AC
  • Category: Discrete Semiconductor Products
  • Application: Rectification Circuits
