Same model may have multiple batches, images only for reference.

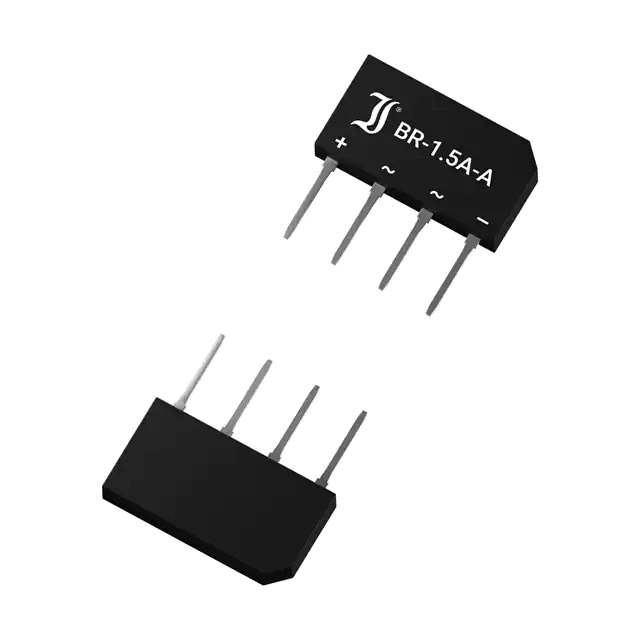

B500C1500B Real Image
Same model may have multiple batches, images only for reference.

B500C1500B

Part No B500C1500B
Manufacturer DIOTEC Electronics Corporation
Catalog Bridge Rectifiers
Description 1PH BRIDGE 19X10X3.5 1000V 2.3A / Bridge Rectifier Single Phase Standard 1 kV Through Hole 4-SIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr DIOTEC Electronics Corporation
Package Box
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 1 kV
Current - Average Rectified (Io) 1.8 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 2 A
Current - Reverse Leakage @ Vr 5 µA @ 1000 V
Temperature Range - Operating -50°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-SIP
Supplier Device Package 4-SIP
Standard Package 500 pcs
MSL Level Not Applicable
HTSUS 8541.10.0000
Win Source Part Number 863104-B500C1500B
Ultra Librarian 3D Model Ultra Librarian B500C1500B CAD Model

Description

The B500C1500B is a single-phase bridge rectifier diode from DIOTEC Electronics Corporation.

  • Technology: Standard
  • Average Rectified Current: 1.8A
  • Forward Voltage: 1.1V @ 2A
  • Reverse Leakage Current: 5µA @ 1000V
  • Mounting Type: Through Hole
  • Package: 4-SIP
  • Temperature Range: -50°C to 150°C
  • Product Status: Active
  • Package Quantity: 500 pcs
