Same model may have multiple batches, images only for reference.

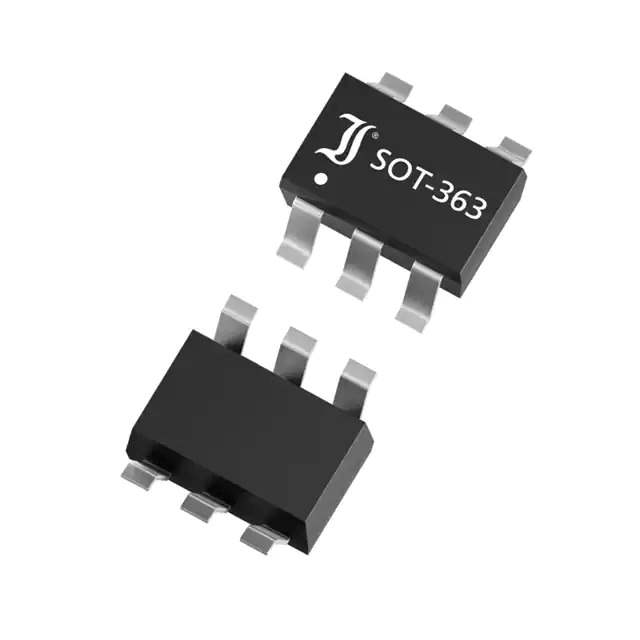

BC846S Real Image
Same model may have multiple batches, images only for reference.

BC846S

Part No BC846S
Manufacturer DIOTEC Electronics Corporation
Catalog Transistors (BJT) - Arrays
Description BIPOLARTRANSISTOR,SOT-363,65V,10 / Bipolar (BJT) Transistor Array 2 NPN (Dual) 65V 100mA 100MHz 250mW Surface Mount SOT-363
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - Bipolar (BJT) - Bipolar Transistor Arrays
Mfr DIOTEC Electronics Corporation
Package Strip
Product Status Active
Transistor Type 2 NPN (Dual)
Current - Collector (Ic) (Max) 100mA
Voltage - Collector Emitter Breakdown (Max) 65V
Vce Saturation (Max) @ Ib, Ic 600mV @ 5mA, 100mA
Current - Collector Cutoff (Max) 15nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 200 @ 2mA, 5V
Power - Max 250mW
Frequency - Transition 100MHz
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 6-VSSOP, SC-88, SOT-363
Supplier Device Package SOT-363
Base Product Number BC846
Standard Package 30 pcs
Win Source Part Number 569362-BC846S
Ultra Librarian 3D Model Ultra Librarian BC846S CAD Model

Description

The BC846S is a dual NPN bipolar transistor array designed for use in discrete semiconductor products.

  • Series: BC846
  • Manufacturer: DIOTEC Electronics Corporation
  • Package Type: Strip
  • Standard Package: 30 pieces
  • Maximum Power: 250mW
  • Maximum Collector-Emitter Breakdown Voltage: 65V
  • Maximum Collector Current: 100mA
  • Vce Saturation: 600mV @ 5mA and 100mA
  • Collector Cutoff Current: 15nA
  • DC Current Gain: 200 @ 2mA and 5V
  • Transition Frequency: 100MHz
  • Mounting Type: Surface Mountable
  • Package: 6-VSSOP, SC-88, SOT-363
  • Operating Temperature Range: -55°C to 150°C
