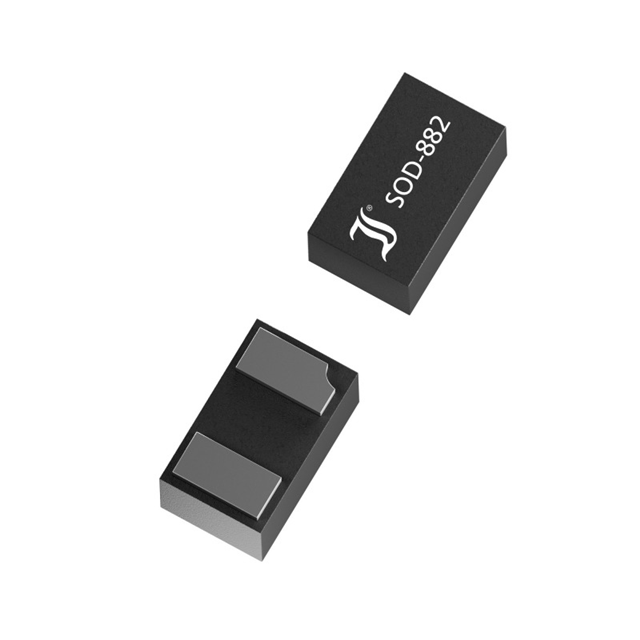

ESD9BL0522P Real Image
Same model may have multiple batches, images only for reference.

ESD9BL0522P

Part No ESD9BL0522P
Manufacturer DIOTEC Electronics Corporation
Catalog TVS - Diodes
Description ESD Diode, 5V, 80W, Un / 20V Clamp 4A (8/20µs) Ipp Tvs Diode Surface Mount SOD-882 (DFN1006-2)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Diotec Semiconductor
Package Tape & Reel
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 5V
Voltage - Breakdown (Min) 6V
Voltage - Clamping (Max) @ Ipp 20V
Current - Peak Pulse (10/1000µs) 4A (8/20µs)
Power - Peak Pulse 80W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 0.4pF @ 1MHz
Temperature Range - Operating -50°C ~ 125°C (TJ)
Mounting Type Surface Mount
Package / Case SOD-882
Supplier Device Package SOD-882 (DFN1006-2)
Standard Package 25
MSL Level Not Applicable
REACH Status REACH info available upon request
HTSUS 8541.10.0000
Win Source Part Number 1340311-ESD9BL0522P
Ultra Librarian 3D Model Ultra Librarian ESD9BL0522P CAD Model

Description

The Diotec Semiconductor ESD9BL0522P is a zener TVS diode that is perfect for general-purpose applications.

  • Voltage Rating: 5V
  • Breakdown Voltage: 6V
  • Power Rating: 80W
  • Capacitance: 0.4pF @ 1MHz
  • Current Peak Pulse: 4A (8/20μs)
  • Package: SOD-882
  • Temperature Range: -50°C to 125°C
