Same model may have multiple batches, images only for reference.

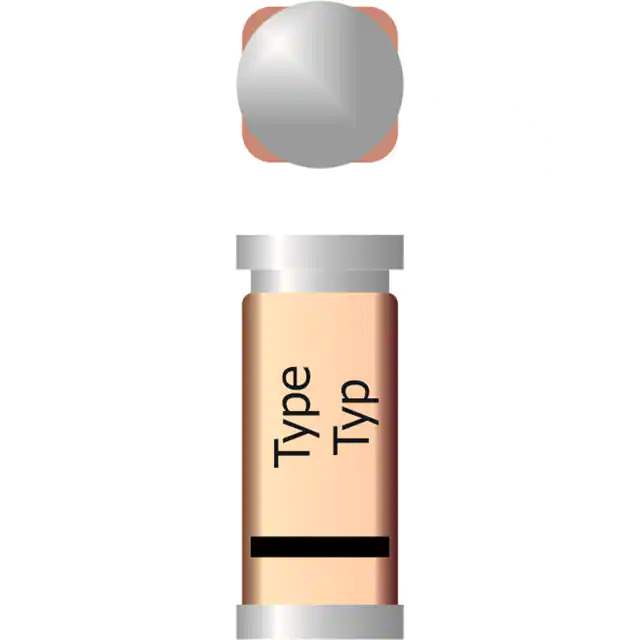

LS4448 Real Image
Same model may have multiple batches, images only for reference.

LS4448

Part No LS4448
Manufacturer DIOTEC Electronics Corporation
Catalog Diodes, Rectifiers - Single
Description DIODE Q-SOD-80 100V 0.15A 4NS
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr DIOTEC Electronics Corporation
Package Tape & Reel
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 75 V
Current - Average Rectified (Io) 150mA
Voltage - Forward (Vf) (Max) @ If 1 V @ 100 mA
Speed Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr) 4 ns
Current - Reverse Leakage @ Vr 5 µA @ 75 V
Capacitance @ Vr, F 4pF @ 0V, 1MHz
Mounting Type Surface Mount
Package / Case DO-213AC, MINI-MELF, SOD-80
Supplier Device Package SOD-80C
Operating Temperature - Junction -55°C ~ 175°C
Base Product Number LS4448
Standard Package 2,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
HTSUS 8541.10.0000
Win Source Part Number 621896-LS4448
Ultra Librarian 3D Model Ultra Librarian LS4448 CAD Model

Description

The 621896-LS4448 is a single diode rectifier from DIOTEC Electronics Corporation.

  • Category: Discrete Semiconductor Products
  • Usage: Commonly used in electronic circuits for rectification purposes
  • Maximum Reverse Voltage: 75V
  • Average Rectified Current: 150mA
  • Forward Voltage Drop: 1V @ 100mA
  • Reverse Recovery Time: 4ns
  • Reverse Leakage Current: 5μA @ 75V
  • Operating Temperature: -55°C to 175°C
  • Package: Surface mount (DO-213AC, MINI-MELF, SOD-80)
  • Packaging: Tape and reel
  • Product Status: Active
  • Application: Widely used in electronic systems that require efficient rectification
