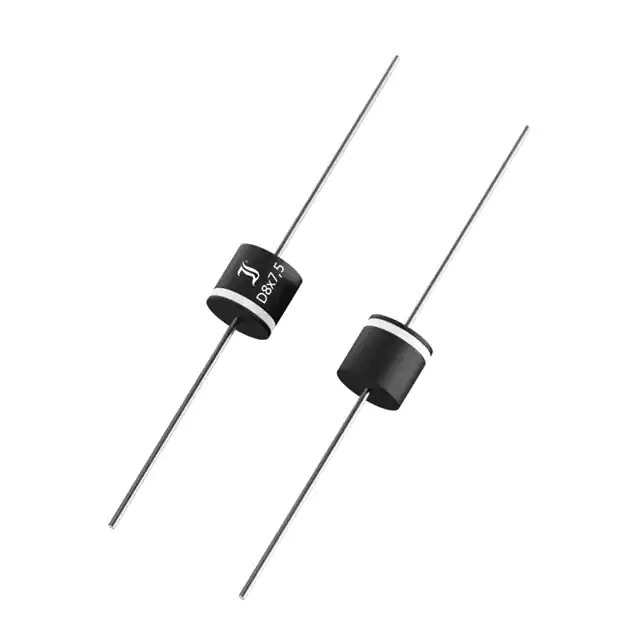

Same model may have multiple batches, images only for reference.
P1000B DIOTEC Electronics Corporation
Same model may have multiple batches, images only for reference.

P1000B

Part No P1000B
Manufacturer DIOTEC Electronics Corporation
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 100V 10A P600
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Diotec Semiconductor
Series -
Package Tape & Reel
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) 10A
Voltage - Forward (Vf) (Max) @ If 1.05 V @ 10 A
Speed Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) 1.5 µs
Current - Reverse Leakage @ Vr 10 µA @ 100 V
Capacitance @ Vr, F -
Mounting Type Through Hole
Package / Case P600, Axial
Supplier Device Package P600
Operating Temperature - Junction -50°C ~ 175°C
MSL Level Not Applicable
HTSUS 8541.10.0000
Win Source Part Number 1368232-P1000B
Ultra Librarian 3D Model Ultra Librarian P1000B CAD Model

Description

The P1000B is a standard rectifier diode from Diotec Semiconductor.

  • Maximum DC Reverse Voltage: 100V
  • Average Rectified Current: 10A
  • Forward Voltage Drop: 1.05V @ 10A
  • Recovery Time: >500ns
  • Reverse Recovery Time: 1.5µs
  • Reverse Leakage Current: 10µA @ 100V
  • Mounting Type: Through-Hole
  • Package: P600 Axial
  • Operating Temperature Range: -50°C to 175°C
