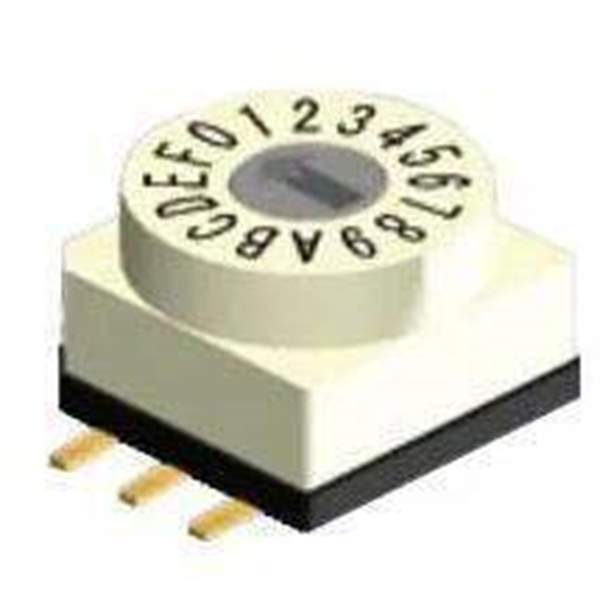

RBM3-16RBVR Diptronics
Same model may have multiple batches, images only for reference.

RBM3-16RBVR

Part No RBM3-16RBVR
Manufacturer Diptronics
Catalog Rotary Switches
Description Coded Rotary Switches SMD 3X3 TERM 16 STEP FLAT HEAD ACT
Datasheet
RBM3-16RBVR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Diptronics
Manufacturer Rotary Switches
Number of Positions 16 Position
Output Code Real
Actuator Rotary
Mounting Style PCB Mount
Termination Style SMD/SMT
Termination Style Reel
Packaging Cut Tape
Series RB
Current Rating 150 mA
Current Rating 250 VAC
Dielectric Strength Non-Illuminated
Ultra Librarian 3D Model Ultra Librarian RBM3-16RBVR CAD Model

Description

The RBM3-16RBVR is a 10×10mm rotary coded switch offering BCD or hexadecimal output, a flat-head actuator, and washable design. It supports SMT mounting, rated at 150mA 24VDC, with 10,000-step durability. Ideal for control, communication, and home appliance applications.
