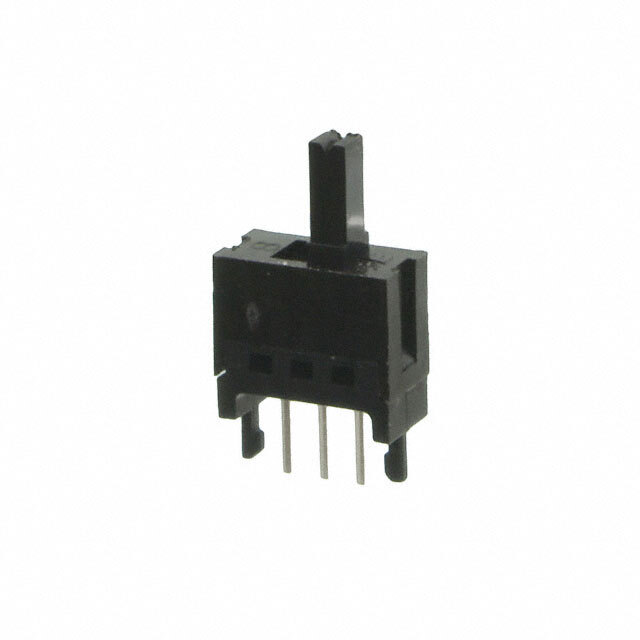

Products specifications Report Issue?

Circuit DP3T
Contact Timing Not Specified
Switch Function On-On-On
Current Rating (Amps) 500mA (DC)
Voltage Rating - DC 15 V
Actuator Type Standard
Actuator Length 8.80mm
Contact Material Copper Alloy
Contact Finish Silver
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Temperature Range - Operating -20°C ~ 70°C
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1559841-EG2319
Ultra Librarian 3D Model Ultra Librarian EG2319 CAD Model
