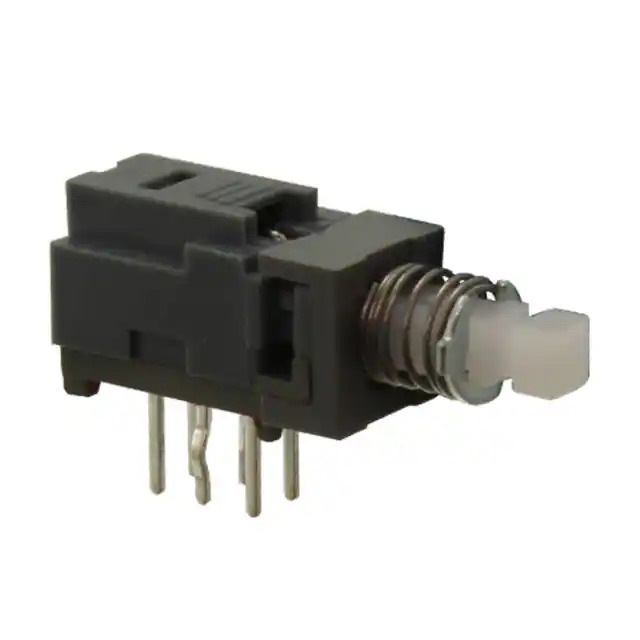

PBH2UEESNPNAGX E-Switch
Same model may have multiple batches, images only for reference.

PBH2UEESNPNAGX

Part No PBH2UEESNPNAGX
Manufacturer E-Switch
Catalog Pushbutton Switches
Description SWITCH PUSH DPDT 0.1A 30V
Datasheet
PBH2UEESNPNAGX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Pushbutton Switches
Mfr E-Switch
Series PBH
Package Bulk
Product Status Active
Mounting Type Through Hole, Right Angle
Type Standard
Circuit DPDT
Switch Function On-On
Current Rating (Amps) 100mA (DC)
Voltage Rating - DC 30 V
Actuator Type Plunger for Cap
Actuator Marking No Marking
Color - Actuator/Cap White
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style PC Pin
Ingress Protection -
Features -
Panel Cutout Dimensions -
Temperature Range - Operating -20°C ~ 70°C
Mechanical Life 30,000 Cycles
Electrical Life 10,000 Cycles
Base Product Number PBH2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9033
Win Source Part Number 1376200-PBH2UEESNPNAGX
Ultra Librarian 3D Model Ultra Librarian PBH2UEESNPNAGX CAD Model

Description

The E-Switch PBH Pushbutton Switch is a reliable and versatile switch suitable for various applications.

  • Temperature Range: -20°C to 70°C
  • Mounting Type: Through Hole, Right Angle
  • Current Rating: 100mA (DC)
  • Voltage Rating: 30V DC
  • Circuit: DPDT
  • Switch Function: on-on
  • Actuator Type: Plunger for Cap
  • Actuator/Cap Color: White
