ST145D00 E-Switch – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

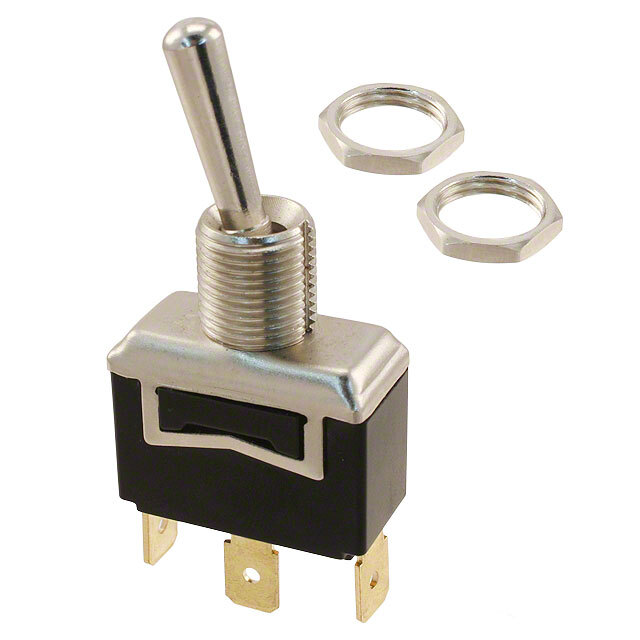

ST145D00

Part No ST145D00
Manufacturer E-Switch
Catalog Toggle Switches
Description Toggle Switch SPDT Panel Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mfr E-Switch
Series ST1
Packaging Bulk
Mounting Type Panel Mount
Circuit SPDT
Switch Function On-Off-On
Current Rating (Amps) 20A (AC)
Voltage Rating - AC 125 V
Actuator Type Standard Round
Actuator Length 19.50mm
Illumination Non-Illuminated
Termination Style Quick Connect - 0.250" (6.3mm)
Panel Cutout Dimensions Circular - 12.00mm Dia
Bushing Thread M12 x 1
Temperature Range - Operating 0°C ~ 85°C
Actuator Material Brass, Nickel Plated
Electrical Life 6,000 Cycles
Base Product Number ST145
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1479284-ST145D00
Ultra Librarian 3D Model Ultra Librarian ST145D00 CAD Model
