Same model may have multiple batches, images only for reference.

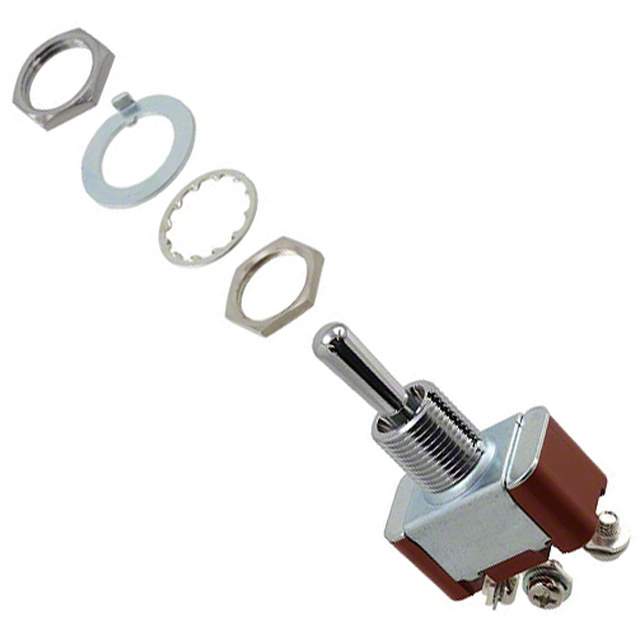

S302T Real Image
Same model may have multiple batches, images only for reference.

S302T

Part No S302T
Manufacturer NKK Switches
Catalog Toggle Switches
Description SWITCH TOGGLE SPDT 15A 125V  /  Toggle Switch SPDT Panel Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Toggle Switches
Mfr NKK Switches
Series S300
Package Bulk
Mounting Type Panel Mount
Circuit SPDT
Switch Function On-On
Current Rating (Amps) 15A (AC), 20A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Standard Round
Actuator Length 17.50mm
Illumination Non-Illuminated
Termination Style Screw Terminal
Panel Cutout Dimensions Circular - 12.50mm Dia
Bushing Thread M12 x 1
Temperature Range - Operating -10°C ~ 70°C
Actuator Material Brass, Chrome Plated
Electrical Life 25,000 Cycles
Base Product Number S302
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1316270-S302T
Ultra Librarian 3D Model Ultra Librarian S302T CAD Model

Description

The NKK Switches S302T is a high-quality toggle switch designed for use in a wide range of applications.

  • Current Rating: 15A (AC), 20A (DC)
  • Voltage Rating: 125V (AC), 30V (DC)
  • Circuit: SPDT
  • Actuator Type: Standard Round
  • Electrical Life: 25,000 Cycles
  • Temperature Range: -10°C ~ 70°C
  • Panel Cutout: Circular - 12.50mm Dia
  • Bushing Thread: M12 x 1
