Products specifications

Categories Integrated Circuits
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Active
Switch Circuit SPDT
Number of Circuits 2
Max On Resistance 5.2 Ohm
Channel-to-Channel Matching (ΔRon) 300 mOhm
Single Supply Voltage (V+) 1.65 V to 4.3 V
Max Switch Time (Ton,Toff) 15ns, 13ns
-3db Bandwidth 800MHz
Charge Injection 5pC
Channel Capacitance(CS off, CD off) 5pF
Max Leakage Current (IS off) 20nA
Crosstalk -78dB @ 1MHz
Temperature Range - Operating -40°C to 85°C (TA)

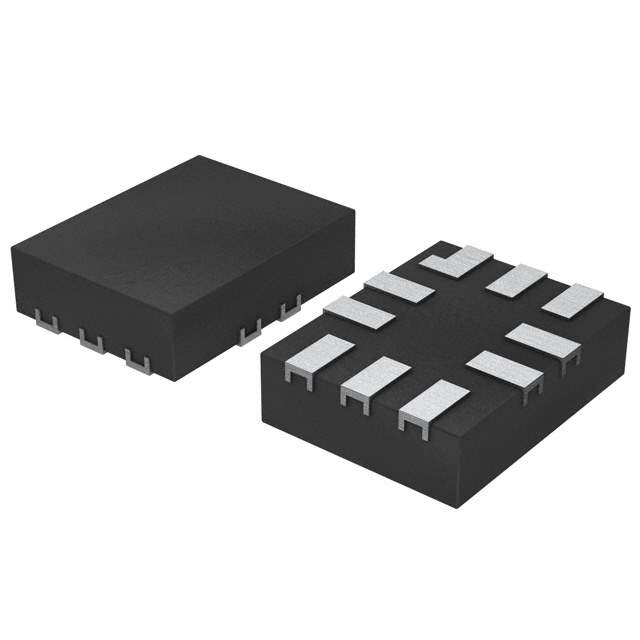

Case / Package 10-QFN (1.8x1.4)
Win Source Part Number 031184-STG3682QTR
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian STG3682QTR CAD Model

Description

The STG3682QTR is a high-performance, dual single-pole double-throw (SPDT) switch from STMicroelectronics, designed for precision and reliability in a wide range of applications. This switch is part of STMicroelectronics' broad portfolio of switch products that cater to the needs of modern electronic systems, providing efficient solutions for signal routing.

Key Features

  • Wide Operating Voltage Range: The device supports a wide operating voltage range from 1.65V to 5.5V, making it versatile for use in various circuits and systems that operate at different voltage levels.
  • Low On-Resistance: The STG3682QTR boasts low on-resistance (R<sub>on), which is typically around 0.5 ohms. This feature minimizes signal distortion and power loss, ensuring high signal integrity and energy efficiency.
  • High-Speed Operation: It is capable of high-speed switching, which is essential for applications that require rapid signal routing and minimal transition times.
  • ESD Protection: The device includes built-in electrostatic discharge (ESD) protection, safeguarding the switch against damage from static electricity and enhancing its durability and lifespan.
  • Low Power Consumption: It is designed with power conservation in mind, featuring low power consumption that is ideal for battery-powered and portable applications.

Applications

The STG3682QTR is suitable for a variety of applications, including but not limited to:

  • Signal routing in audio, video, and data communication systems
  • Portable and battery-powered devices
  • Test and measurement equipment
  • Computer peripherals and network switches

Package and Quality

The STG3682QTR comes in a compact QFN-10 package, which is ideal for space-constrained applications. The package is designed for optimal thermal performance and minimal parasitic effects. STMicroelectronics is committed to delivering high-quality products, and the STG3682QTR is no exception, meeting rigorous industry standards for performance and reliability.
