Same model may have multiple batches, images only for reference.

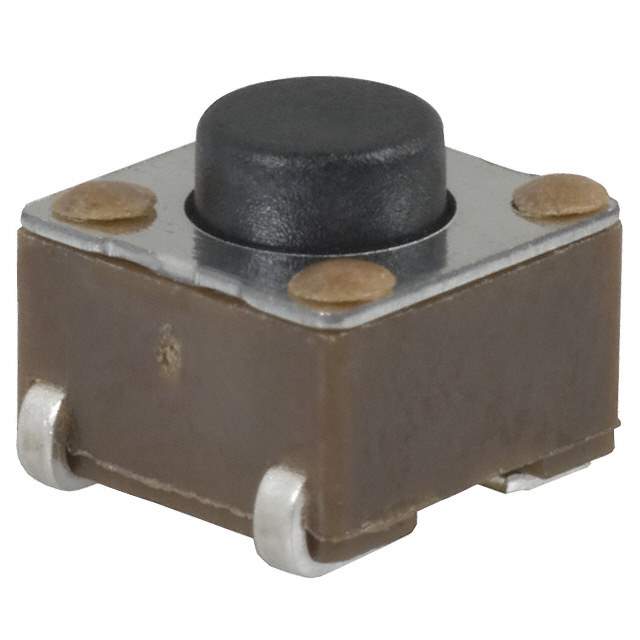

TL3301NF160QJ Real Image
Same model may have multiple batches, images only for reference.

TL3301NF160QJ

Part No TL3301NF160QJ
Manufacturer E-Switch
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 12V
Datasheet
TL3301NF160QJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Estimated Pruduction Lead Time 13 Weeks
Features Tactile Switch SPST-NO Top Actuated Surface Mount
Manufacturer E-Switch
Series TL3301
Package Reel - TR
Operating Temperature Range -20°C ~ 70°C
Mounting Surface Mount
Family Name TL3301
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Other Part Number EG4376CT, EG4376DKR, Q3636687AA, EG4376TR
Quantity per package 1100
Popularity High
Supply and Demand Status Balance
Win Source Part Number 899758-TL3301NF160QJ
Ultra Librarian 3D Model Ultra Librarian TL3301NF160QJ CAD Model

Description

The TL3301 tactile switch from E-Switch is a SPST-NO switch with a surface mount termination style.

  • Switch Type: Tactile Switch
  • Circuit: SPST-NO
  • Termination Style: Surface Mount
  • Actuator: Standard
  • Operating Temperature: -20°C ~ 70°C
  • Mechanical Life: 100,000 cycles
  • Package: Reel
  • Quantity per Package: 1100
  • Contact Rating: 0.05A @ 12VDC
  • Manufacturer: E-Switch
