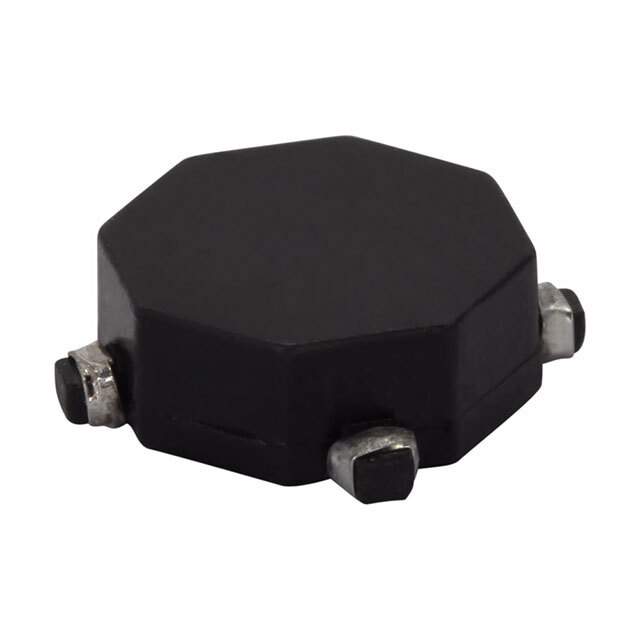

CTX15-1-R Real Image
Same model may have multiple batches, images only for reference.

CTX15-1-R

Part No CTX15-1-R
Manufacturer Eaton Bussmann
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 14.4UH SMD / Unshielded 2 Coil Inductor Array 57.6 µH Inductance - Connected in Series 14.4 µH Inductance - Connected in Parallel 80mOhm Max DC Resistance (DCR) - Parallel 1.1 A Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Arrays, Signal Transformers
Mfr Eaton - Electronics Division
Series OCTA-PAC®
Package Tape & Reel
Number of Coils 2
Inductance - Connected In Parallel 14.4 µH
Inductance - Connected In Series 57.6 µH
Tolerance ±20%
Current Rating - Parallel 1.1 A
Current Rating - Series 550 mA
DC Resistance (DCR) - Parallel 80mOhm Max
DC Resistance (DCR) - Series 319mOhm Max
Shielding Unshielded
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.450" L x 0.450" W (11.43mm x 11.43mm)
Height 0.165" (4.19mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Names CTX15-1-ND,CTX15-1,CTX15-1-R-ND,283-4354-1,283-4354-2,283-4354-6
Standard Package 1,100
Win Source Part Number 1101648-CTX15-1-R
Ultra Librarian 3D Model Ultra Librarian CTX15-1-R CAD Model

Description

The CTX15-1-R is an OCTA-PAC inductor array that is widely used in the electronics industry.

  • Shielding: Unshielded
  • Tolerance: ±20%
  • Package: Tape and Reel
  • Height: 0.165 inches (4.19mm)
  • Coils: Two
  • Inductance (Series): 57.6 µH
  • Inductance (Parallel): 14.4 µH
  • Current Rating (Parallel): 1.1A
  • Current Rating (Series): 550mA
  • DCR (Parallel): 80mOhm max
  • DCR (Series): 319mOhm max
  • Package/Case: Nonstandard
  • Dimension: 0.450 inches (11.43mm) L x 0.450 inches (11.43mm) W
  • Temperature Range: -40°C to 85°C
  • Standard Packages: 1,100
  • ECCN: EAR99
  • HTSUS: 8504.50.4000
