Same model may have multiple batches, images only for reference.

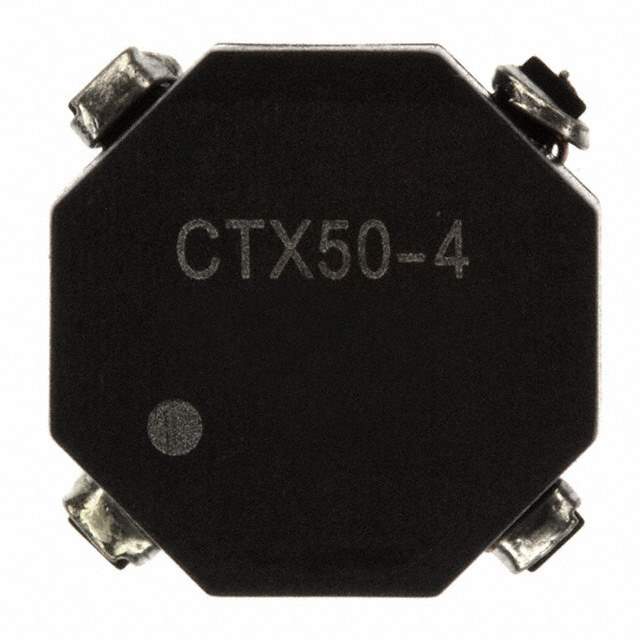

CTX50-4-R Real Image
Same model may have multiple batches, images only for reference.

CTX50-4-R

Part No CTX50-4-R
Manufacturer Eaton Bussmann
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 50.18UH SMD
Datasheet
CTX50-4-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton Bussmann
Packaging Reel - TR
Status Active
Number of Coils 2
Test Inductance - Connected In Series 200.7μH
Inductance - Connected In Parallel 50.18μH
Tolerance ±20%
Current Rating - Parallel 1.5A
Current Rating - Series 750mA
DC Resistance (DCR) - Parallel 111 mOhm Max
DC Resistance (DCR) - Series 443 mOhm Max
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Height 0.250" (6.35mm)
Win Source Part Number 050534-CTX50-4-R
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian CTX50-4-R CAD Model

Description

CTX50-4-R Inductor

The CTX50-4-R is specifically crafted to meet the needs of modern electronic systems. Known for its precision and durability, this inductor is perfect for applications where efficiency is paramount. Its design facilitates maximum energy storage with quick response times.

Features and Benefits

  • Precise inductance for accurate energy transfer.
  • High efficiency with low loss characteristics.
  • Quick response time for dynamic applications.

Applications

  • Renewable energy systems
  • High-efficiency power supplies
  • Advanced communication devices
