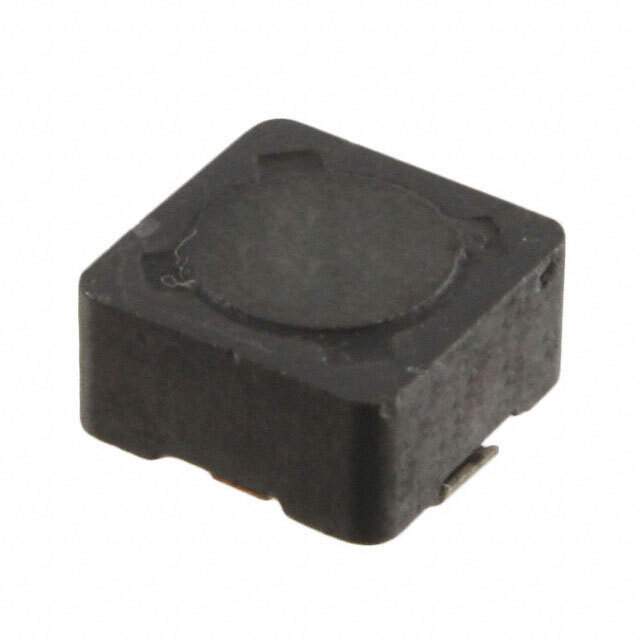

DR74-101 Real Image1 DR74-101 Real Image2
Same model may have multiple batches, images only for reference.
DR74-101 Real Image1 DR74-101 Real Image2
DR74-101 Real Image1 DR74-101 Real Image2
Same model may have multiple batches, images only for reference.

DR74-101

Part No DR74-101
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 100UH 860MA 383MOHM SM / 100 µH Shielded Drum Core, Wirewound Inductor 860 mA 383mOhm Nonstandard
Datasheet
DR74-101 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Eaton Bussmann
Series DR
Package Tape & Reel
Product Status Obsolete
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 100 µH
Tolerance ±20%
Current Rating (Amps) 860 mA
Current - Saturation (Isat) 990mA
Shielding Shielded
DC Resistance (DCR) 383mOhm
Q @ Freq -
Frequency - Self Resonant -
Ratings -
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.299" L x 0.299" W (7.60mm x 7.60mm)
Height - Seated (Max) 0.171" (4.35mm)
RoHS Status RoHS non-compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Standard Package 1,100 pcs
Win Source Part Number 1381910-DR74-101
Ultra Librarian 3D Model Ultra Librarian DR74-101 CAD Model

Description

The DR series fixed inductor is a high-quality component, part of the Eaton Bussmann series.

  • Type: Drum Core, Wirewound, Shielded
  • Size: 0.299" L x 0.299" W
  • Inductance: 100μH
  • Height (Max): 0.171"
  • Tolerance: ±20%
  • Core Material: Ferrite
  • Mounting Type: Surface Mount
  • Package/Case: Nonstandard
  • DC Resistance: 383mOhm
  • Current Rating: 860mA
  • Operating Temperature: -40°C to 125°C
  • RoHS Compliant: Non-Compliant
