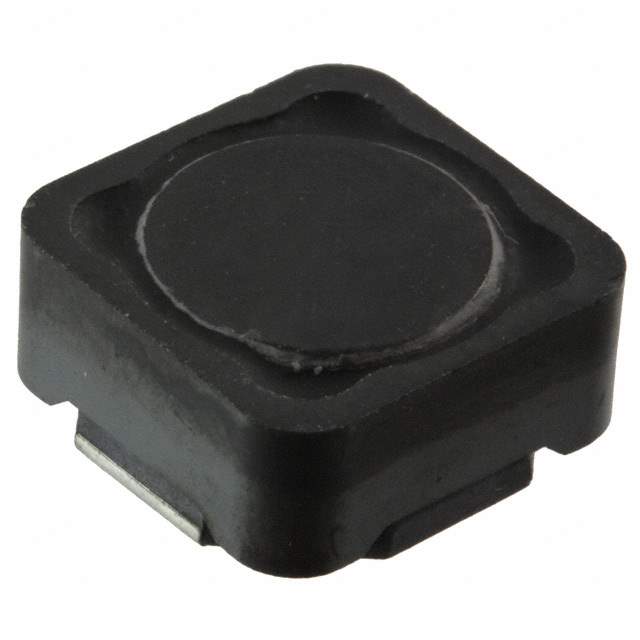

Same model may have multiple batches, images only for reference.

DRA125-330-R

Name: DRA125-330-R
Brand: Eaton Bussmann
SKU: 999021
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	DRA125-330-R
Manufacturer	Eaton Bussmann
Catalog	Fixed Inductors
Description	FIXED IND 33UH 3.19A 53 MOHM SMD / 33 µH Shielded Wirewound Inductor 3.19 A 53mOhm Nonstandard
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Eaton - Electronics Division
Series	DRA
Package	Tape & Reel
Type	Wirewound
Inductance	33 µH
Tolerance	±20%
Current Rating (Amps)	3.19 A
Current - Saturation (Isat)	3.86A
Shielding	Shielded
DC Resistance (DCR)	53mOhm
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 165°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max)	0.236" (6.00mm)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	DRA125330R,283-3574-1,283-3574-2,283-3574-6,DRA125-330-R-ND
Standard Package	600
Win Source Part Number	999021-DRA125-330-R
Ultra Librarian 3D Model	Ultra Librarian DRA125-330-R CAD Model

Alternative Products

Description

The Eaton - Electronics Division DRA125-330-R is a wirewound fixed inductor that has a shielding feature.

Inductance: 33 µH
DC Resistance (DCR): 53mOhm
Mounting Technology: SMT
Height: 0.236 inches (6.00mm)
Dimension: 0.492 inches L x 0.492 inches W (12.50mm x 12.50mm)
Tolerance: ±20%
AEC-Q200 Rated: Yes
Category: Inductors, Coils, Chokes
Package: Tape and Reel
Temperature Range: -40°C to 165°C
Current Rating: 3.19 A
