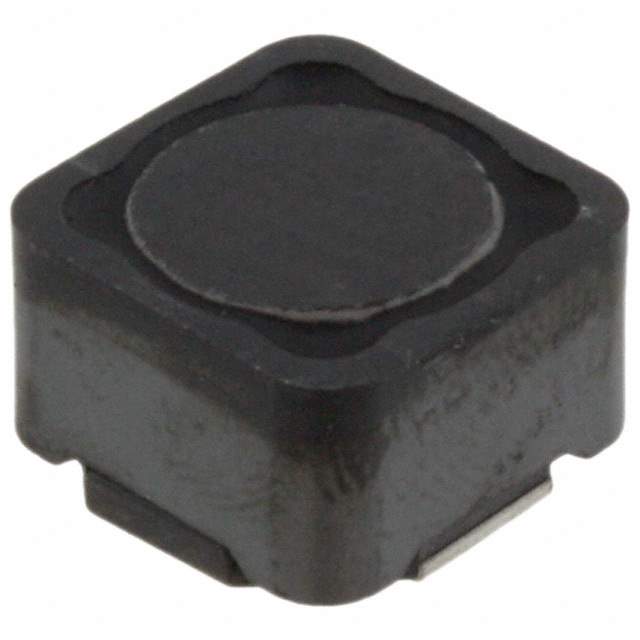

Same model may have multiple batches, images only for reference.

DRA127-101-R

Name: DRA127-101-R
Brand: Eaton Bussmann
SKU: 793023
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	DRA127-101-R
Manufacturer	Eaton Bussmann
Catalog	Fixed Inductors
Description	FIXED IND 100UH 1.888A 175 MOHM / Inductor Power Shielded Drum Core 100.8uH/100uH 20% 100KHz Ferrite 1.89A 0.21Ohm DCR Automotive T/R
Datasheet	DRA127-101-R Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Eaton
Series	DRA
Packaging	Reel package
Type	Wirewound
Inductance	100μH
Tolerance	±20%
Current Rating	1.888A
Current - Saturation	3.46A
Shielding	Shielded
DC Resistance (DCR)	175 mOhm
Ratings	AEC-Q200
Operating Temperature Range	-40°C ~ 165°C
Test Frequency	100kHz
Mounting	SMD
Package	Nonstandard
Dimension	0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Maximum)	0.315" (8.00mm)
Win Source Part Number	793023-DRA127-101-R
Popularity	Medium
Supply and Demand Status	Limited
Family Name	DRA
Introduction Date	July 23, 1999
ECCN	EAR99
Country of Origin	China, Philippines
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian DRA127-101-R CAD Model

Alternative Products

Description

The DRA127-101-R is an Eaton electronic component.

Applications: Inductors, Coils, and Chokes
Packaging: Nonstandard
Shielded: Yes
Tolerance: ±20%
AEC-Q200 Rated: Yes
DC Resistance: 175 mOhm
Dimension: 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height: 0.315" (8.00mm)
Supply and Demand Status: Limited
