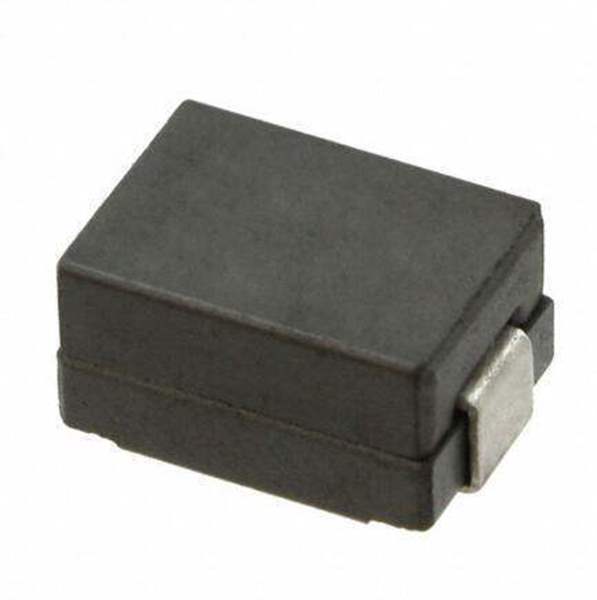

FP0404R1-R022-R Eaton - Electronics Division
Same model may have multiple batches, images only for reference.

FP0404R1-R022-R

Part No FP0404R1-R022-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 22NH 40A 0.32MOHM SMD
Datasheet
FP0404R1-R022-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Eaton - Electronics Division
Category Inductors, Coils, Chokes Fixed Inductors
Part Status Active
Type Drum Core, Wirewound
Inductance 22 nH
Tolerance ±15%
DC Resistance (DCR) 0.32mOhm
Operating Temperature -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Win Source Part Number WS1305701-FP0404R1-R022-R
Ultra Librarian 3D Model Ultra Librarian FP0404R1-R022-R CAD Model

Description

Product features
• High current carrying capacity
• Low core loss
• DC-DC converter applications up to 2 MHz
• Filtering applications see inductance vs frequency and impedance vs frequency curves on page 5
• Inductance Range from 22 nH to 170 nH
• Current range up to 40 A
• 4.0 mm x 4.0 mm footprint surface mount package in 3.0 mm and 4.0 mm heights
• Moisture sensitivity level (MSL): 1
• Ferrite core materia
