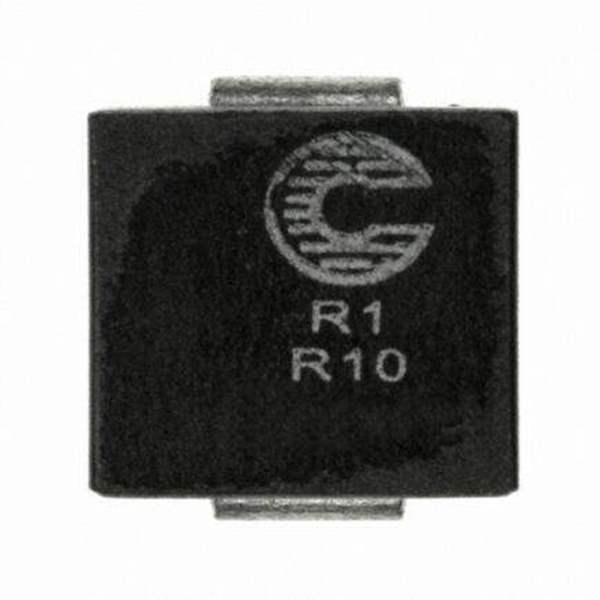

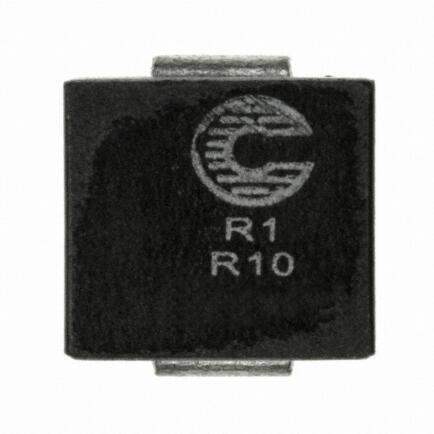

FP0805R1-R10-R

Part No FP0805R1-R10-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 100NH 65A 0.17MOHM SMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Eaton - Electronics Division
Category Inductors, Coils, Chokes Fixed Inductors
Part Status Active
Type Drum Core, Wirewound
Inductance 100 nH
Tolerance ±10%
Current - Saturation (Isat) 50A
DC Resistance (DCR) 0.17mOhm
Operating Temperature -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Win Source Part Number WS1305697-FP0805R1-R10-R
Ultra Librarian 3D Model Ultra Librarian FP0805R1-R10-R CAD Model

Description

Product features
• 7.5 x 7.6 x 5mm surface mount package
• Ferrite core material
• High current carrying capacity, Low core losses
• Controlled DCR tolerance for sensing circuits
• Inductance range from 32nH to 200nH
• Current range from 20 to 110 Amps • Frequency range up to 2MHz
