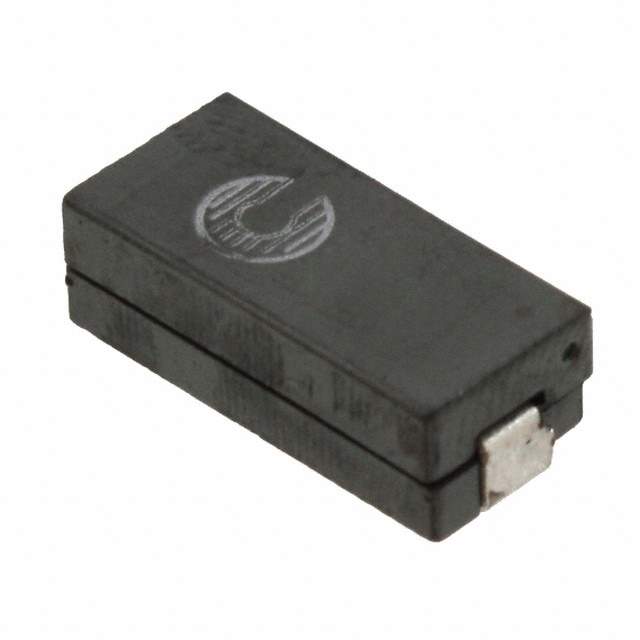

FP1505R1-R12-R

Name: FP1505R1-R12-R
Brand: Eaton Bussmann
SKU: 774698
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	FP1505R1-R12-R
Manufacturer	Eaton Bussmann
Catalog	Fixed Inductors
Description	FIXED IND 120NH 53A 0.47 MOHM / Inductor Power Wirewound 0.12uH/0.086uH 10% 100KHz Ferrite 53A 0.00047Ohm DCR T/R
Datasheet	FP1505R1-R12-R Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Eaton
Series	FLAT-PAC, FP1505
Packaging	Reel package
Type	Wirewound
Material - Core	Ferrite
Inductance	120nH
Tolerance	±10%
Current Rating	53A
Current - Saturation	87A
Shielding	Unshielded
DC Resistance (DCR)	0.47 mOhm
Operating Temperature Range	-40°C ~ 125°C
Test Frequency	100kHz
Mounting	SMD
Package	Nonstandard
Dimension	0.579" L x 0.264" W (14.70mm x 6.70mm)
Height - Seated (Maximum)	0.197" (5.00mm)
Win Source Part Number	774698-FP1505R1-R12-R
Popularity	Medium
Supply and Demand Status	Limited
Family Name	FP1505
Introduction Date	May 19, 2009
ECCN	EAR99
Country of Origin	Philippines
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian FP1505R1-R12-R CAD Model

Alternative Products

Description

The Eaton FP1505R1-R12-R is a wirewound inductor.

Shielding: Shielded and unshielded
Inductance: 120nH
Current Rating: 53A
Mounting: Surface Mount
Tolerance: ±10%
Dimensions: 0.579" L x 0.264" W (14.70mm x 6.70mm)
Height - Seated (Maximum): 0.197" (5.00mm)
Popularity: Medium
Supply and Demand Status: Limited
Operating Temperature Range: -40°C ~ 125°C
EOL Date: 2027 (estimated)
