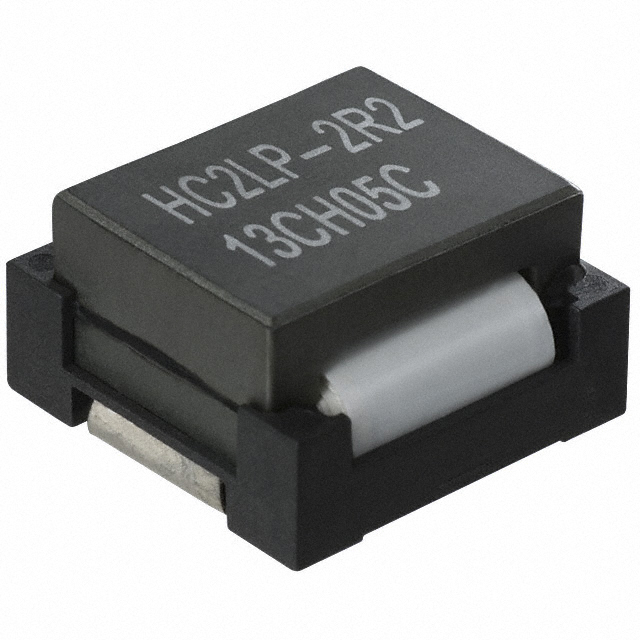

HC2LP-2R2-R Eaton Bussmann
Same model may have multiple batches, images only for reference.

HC2LP-2R2-R

Part No HC2LP-2R2-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 2.2UH 24.3A 2.3 MOHM
Datasheet
HC2LP-2R2-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton Bussmann
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 2.2μH
Tolerance ±20%
Current Rating 24.3A
Current - Saturation 31.9A
DC Resistance (DCR) 2.3 mOhm Max
Temperature Range - Operating -40°C to 85°C
Frequency - Test 300kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.440" (11.18mm)
Win Source Part Number 001501-HC2LP-2R2-R
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HC2LP-2R2-R CAD Model

Description

The supply and demand status of this product is limited. It is a wirewound inductor with an inductance of 2.2μH and a current rating of 24.3A. It has a ferrite core and a maximum height of 0.440" (11.18mm). It is suitable for use in various applications, including power supplies, DC-DC converters, and voltage regulators. It provides high performance and reliability with a low DC resistance of 2.3 mOhm max.
