Same model may have multiple batches, images only for reference.

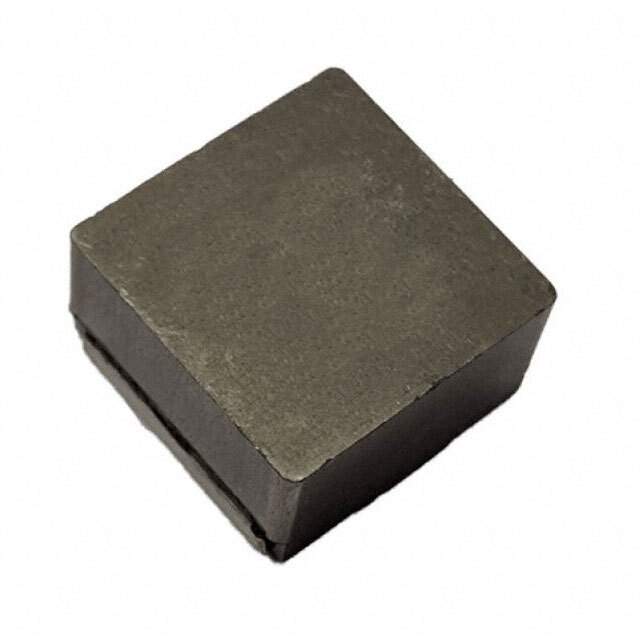

HCM1A2213V2-4R7-R Real Image
Same model may have multiple batches, images only for reference.

HCM1A2213V2-4R7-R

Part No HCM1A2213V2-4R7-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 4.7UH 33A 1.85MOHM SMD / 4.7 µH Shielded Inductor 33 A 1.85mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Eaton - Electronics Division
Series HCM1AV2
Package Tape & Reel (TR)
Material - Core Iron Powder
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 33 A
Current - Saturation (Isat) 37A
Shielding Shielded
DC Resistance (DCR) 1.85mOhm Max
Frequency - Self Resonant 10MHz
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 155°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.885" L x 0.866" W (22.48mm x 22.00mm)
Height - Seated (Max) 0.512" (13.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names 283-HCM1A2213V2-4R7-RTR
Standard Package 100
Win Source Part Number 1224522-HCM1A2213V2-4R7-R
Ultra Librarian 3D Model Ultra Librarian HCM1A2213V2-4R7-R CAD Model

Description

The Eaton HCM1A2213V2-4R7-R is a fixed inductor categorized under inductors, coils, chokes. It belongs to the HCM1AV2 series and is designed for surface mount and nonstandard package applications.

  • Series: HCM1AV2
  • Mounting: Surface Mount, Nonstandard Package
  • Shielded: Yes
  • Inductance: 4.7 µH
  • Tolerance: ±20%
  • Operating Temperature: -55°C to 155°C
  • DC Resistance (DCR): 1.85mOhm Max
  • Package: Tape & Reel (TR)
  • Standard Package: 100
  • MSL Level: 1 (Unlimited)
  • Current Rating: 33 A
  • HTSUS Code: 8504.50.8000
  • Manufacturer: Eaton - Electronics Division
