Same model may have multiple batches, images only for reference.

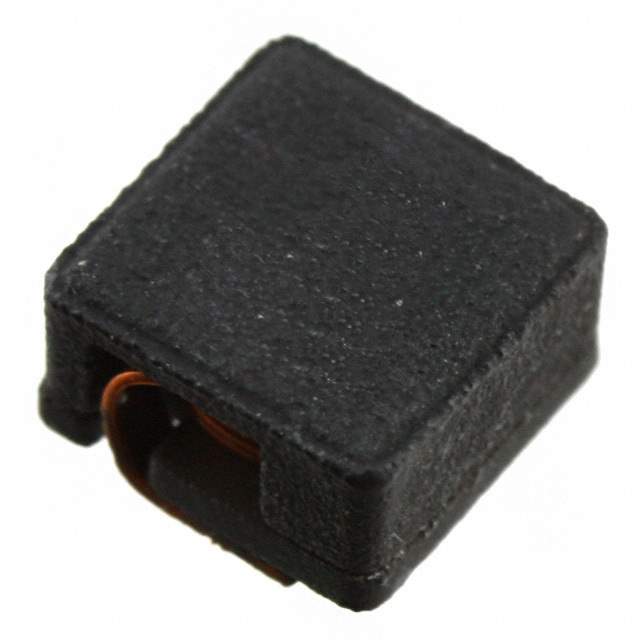

HCP0704-R40-R Real Image
Same model may have multiple batches, images only for reference.

HCP0704-R40-R

Part No HCP0704-R40-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 400NH 17A 3.2 MOHM SMD / Inductor Power Shielded Wirewound 0.4uH/0.28uH 25% 100KHz Powdered Iron 17A 0.0032Ohm DCR T/R
Datasheet
HCP0704-R40-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton
Series HCP0704
Packaging Reel package
Type Wirewound
Material - Core Powdered Iron
Inductance 400nH
Tolerance ±25%
Current Rating 17A
Current - Saturation 27A
Shielding Shielded
DC Resistance (DCR) 3.2 mOhm
Operating Temperature Range -40°C ~ 155°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Dimension 0.268" L x 0.268" W (6.80mm x 6.80mm)
Height - Seated (Maximum) 0.157" (4.00mm)
Win Source Part Number 775656-HCP0704-R40-R
Popularity Medium
Supply and Demand Status Limited
Family Name HCP0704
Introduction Date January 12, 2009
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian HCP0704-R40-R CAD Model

Description

The Eaton HCP0704-R40-R is a wirewound inductor from Eaton.

  • Inductance: 400nH
  • Current Rating: 17A
  • Mounting Type: Surface Mount
  • Height: 4.00mm
  • Material: Powdered Iron
  • Tolerance: ±25%
  • Operating Temperature Range: -40°C to 155°C
  • Popularity: Medium
