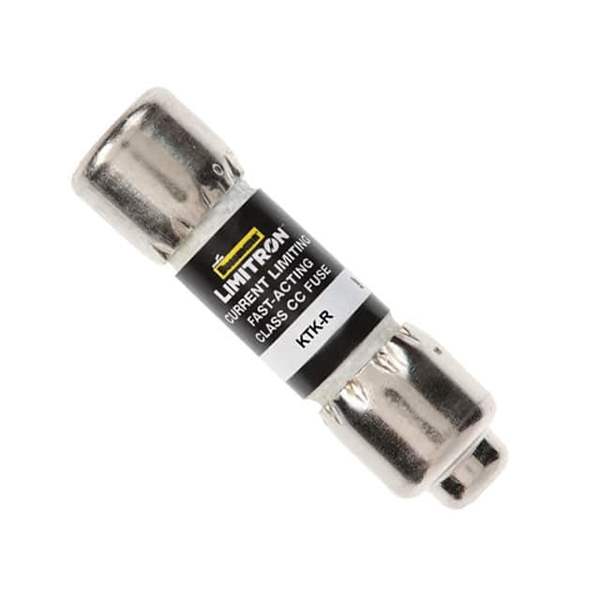

KTK-R-20
Same model may have multiple batches, images only for reference.

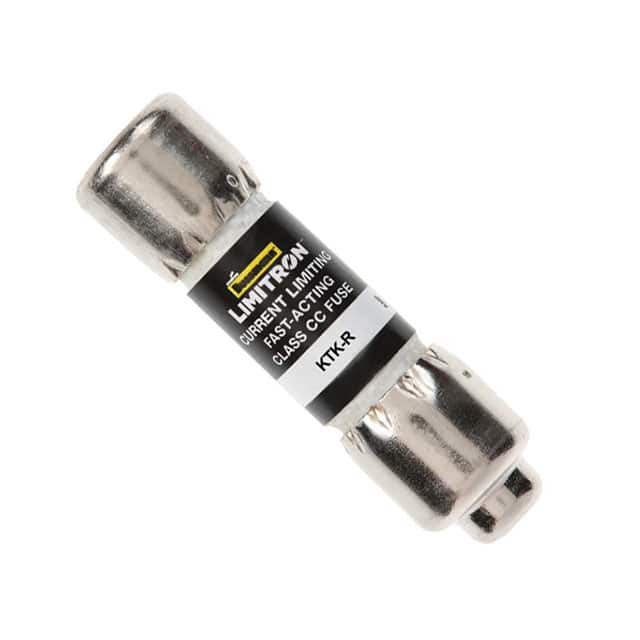

KTK-R-20

Part No KTK-R-20
Manufacturer Eaton Bussmann
Catalog Electrical, Specialty Fuses
Description FUSE CARTRIDGE 20A 600VAC 5AG / 20A 600 V AC DC Fuse Cartridge Requires Holder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Electrical, Specialty Fuses
Mfr Eaton Bussmann
Series Limitron™ KTK-R
Package Bulk
Product Status Active
Mounting Type Requires Holder
Fuse Type Cartridge
Current Rating (Amps) 20A
Voltage Rating - AC 600 V
Response Time Fast Blow
Applications Electrical, Industrial
Class CC
Approval Agency CE, CSA, UL
Breaking Capacity @ Rated Voltage 200kA
Package / Case 5AG, 10mm x 38mm (Midget)
Size / Dimension 0.406" Dia x 1.500" L (10.30mm x 38.10mm)
Standard Package 10 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 876480-KTK-R-20
Ultra Librarian 3D Model Ultra Librarian KTK-R-20 CAD Model

Description

The KTK-R-20 is a fast blow cartridge fuse designed for electrical and industrial applications.

  • Voltage Rating: 600V AC
  • Breaking Capacity: 200kA
  • Size: 0.406" Dia x 1.500" L (10.30mm x 38.10mm)
  • Package: 5AG, 10mm x 38mm (Midget)
  • Mounting Type: requires holder
  • Series: Limitron™ KTK-R
  • Manufacturer: Eaton Bussmann
  • Current Rating: 20A
  • Approvals: CE, CSA, and UL
