Same model may have multiple batches, images only for reference.

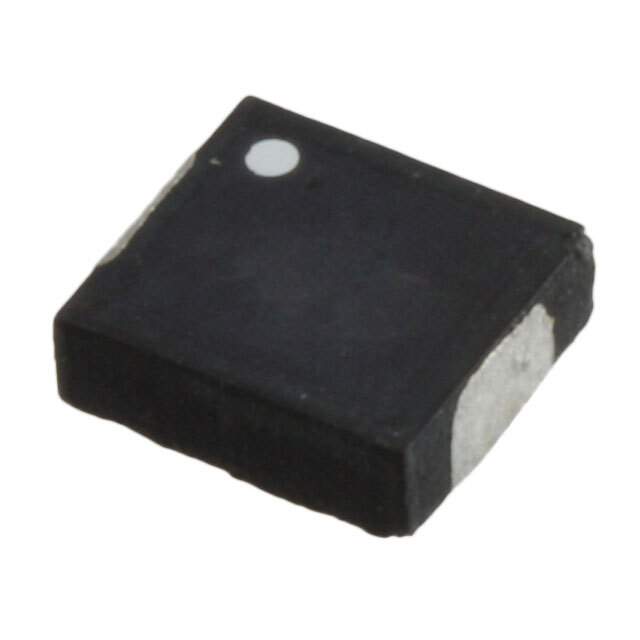

MPI4040R2-3R3-R Real Image
Same model may have multiple batches, images only for reference.

MPI4040R2-3R3-R

Part No MPI4040R2-3R3-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 3.3UH 2.6A 76 MOHM SMD
Datasheet
MPI4040R2-3R3-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton Bussmann
Packaging Reel - TR
Status Obsolete(EOL)
Type Wirewound
Material - Core Metal Composite
Inductance 3.3μH
Tolerance ±20%
Current Rating 2.6A
Current - Saturation 5.4A
DC Resistance (DCR) 76 mOhm
Temperature Range - Operating -55°C to 125°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.059" (1.50mm)
Win Source Part Number 111444-MPI4040R2-3R3-R
Ultra Librarian 3D Model Ultra Librarian MPI4040R2-3R3-R CAD Model

Description

The MPI4040R2-3R3-R is a wirewound type inductor manufactured by Eaton Bussmann. This device features a current rating of 2.6A and an inductance of 3.3μH.

  • Current Rating: 2.6A
  • Inductance: 3.3μH
  • Seated Height: 0.059" (1.50mm)
  • Mounting Type: SMD (SMT)
  • Tolerance: ±20%
  • Material Core: metal composite
  • Current Saturation: 5.4A
  • DC Resistance (DCR): 76 mOhm
  • Temperature Range: -55°C to 125°C

This device is obsolete (EOL) and has a temperature range of -55°C to 125°C.

The MPI4040R2-3R3-R is categorized as an inductor, coil, or choke.
