Same model may have multiple batches, images only for reference.

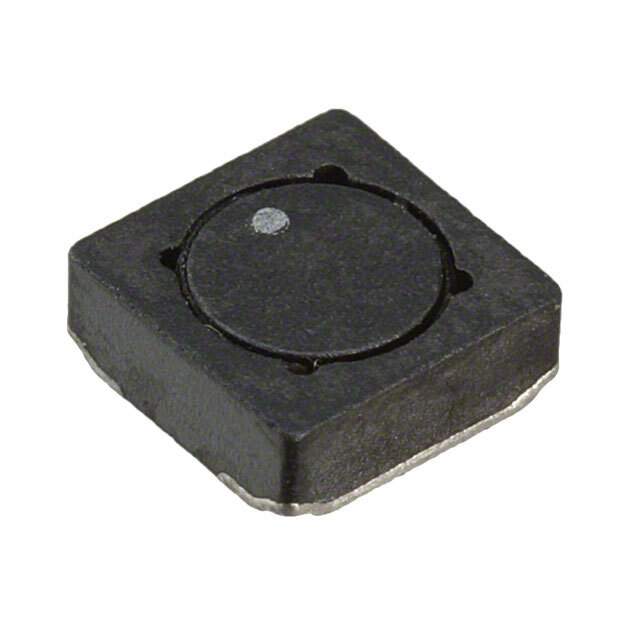

SD20-8R2 Real Image
Same model may have multiple batches, images only for reference.

SD20-8R2

Part No SD20-8R2
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 8.2UH 1.61A 100 MOHM
Datasheet
SD20-8R2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton Bussmann
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 8.2μH
Tolerance ±20%
Current Rating 1.61A
Current - Saturation 966mA
DC Resistance (DCR) 100 mOhm
Temperature Range - Operating -40°C to 85°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.079" (2.00mm)
Win Source Part Number 046801-SD20-8R2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SD20-8R2 CAD Model

Description

The Eaton Bussmann Wirewound Inductor is a high-quality inductor that is designed to provide superior performance in electronic devices.

  • Current Rating: 1.61A
  • Inductance: 8.2μH
  • Mounting: SMD (SMT)
  • Tolerance: ±20%
  • Material: ferrite
  • DC Resistance (DCR): 100 mOhm
