Same model may have multiple batches, images only for reference.

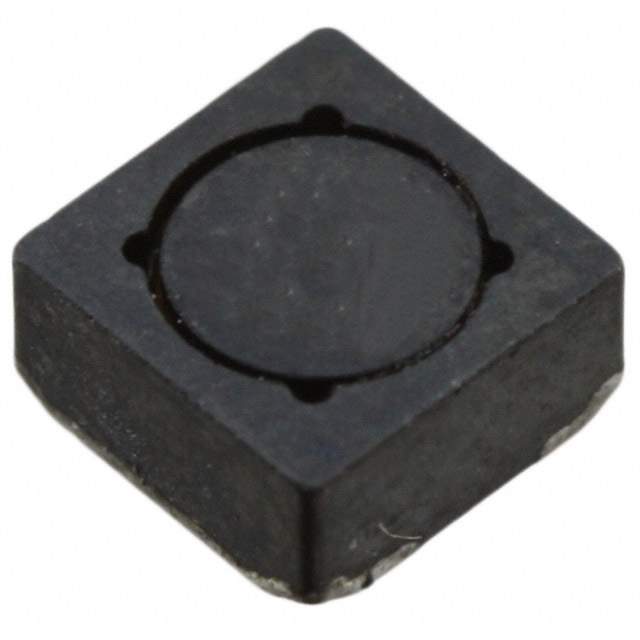

SD25-151-R Real Image
Same model may have multiple batches, images only for reference.

SD25-151-R

Part No SD25-151-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 150UH 553MA 872.3 MOHM / 150 µH Shielded Drum Core, Wirewound Inductor 553 mA 872.3mOhm Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Eaton - Electronics Division
Series SD
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 150 µH
Tolerance ±20%
Current Rating (Amps) 553 mA
Current - Saturation (Isat) 328mA
Shielding Shielded
DC Resistance (DCR) 872.3mOhm
Temperature Range - Operating -40°C ~ 85°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.205" L x 0.205" W (5.20mm x 5.20mm)
Height - Seated (Max) 0.098" (2.50mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Names 283-4694-6,SD25-151-ND,283-4694-1,283-4694-2,SD25-151-R-ND,SD25-151
Standard Package 2,900
Win Source Part Number 1091510-SD25-151-R
Ultra Librarian 3D Model Ultra Librarian SD25-151-R CAD Model

Description

The Eaton SD25-151-R inductor is a drum core, wirewound type inductor that is shielded and has a standard package of 2,900.

  • Tolerance: ±20%
  • Core Material: ferrite
  • Inductance: 150 µH
  • DC Resistance (DCR): 872.3mOhm
  • Height: 0.098 inches
  • Width: 0.205 inches
  • Operating Temperature: -40°C to 85°C
  • Current Rating: 553 mA
  • Ideal For: use in electronic devices that require a high inductance frequency
