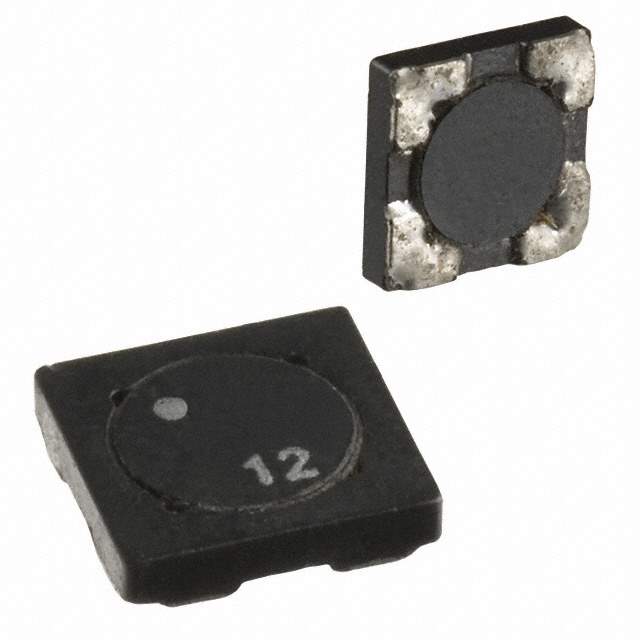

SDQ12-100-R Real Image
Same model may have multiple batches, images only for reference.

SDQ12-100-R

Part No SDQ12-100-R
Manufacturer Eaton Bussmann
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 9.61UH SMD
Datasheet
SDQ12-100-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton Bussmann
Packaging Reel - TR
Status Active
Number of Coils 2
Test Inductance - Connected In Series 38.44μH
Inductance - Connected In Parallel 9.61μH
Tolerance ±20%
Current Rating - Parallel 831mA
Current Rating - Series 416mA
Current Saturation - Parallel 981mA
Current Saturation - Series 490mA
DC Resistance (DCR) - Parallel 362 mOhm
DC Resistance (DCR) - Series 1.45 Ohm
Temperature Range - Operating -40°C to 125°C
Mounting SMD (SMT)
Height 0.047" (1.19mm)
Win Source Part Number 046818-SDQ12-100-R
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian SDQ12-100-R CAD Model

Description

The Eaton Bussmann 046818-SDQ12-100-R is an active inductor, coil, and choke that has a medium popularity.

  • GPTDescription: The inductor has a mounting of SMD (SMT) and a tolerance of ±20%.
  • GPTDescription: It has a height of 0.047" (1.19mm) and has two coils.
  • GPTDescription: The inductance when connected in parallel is 9.61μH, and its current rating is 831mA.
  • GPTDescription: The current saturation when parallel is 981mA, and its DC resistance (DCR) when parallel is 362 mOhm.
