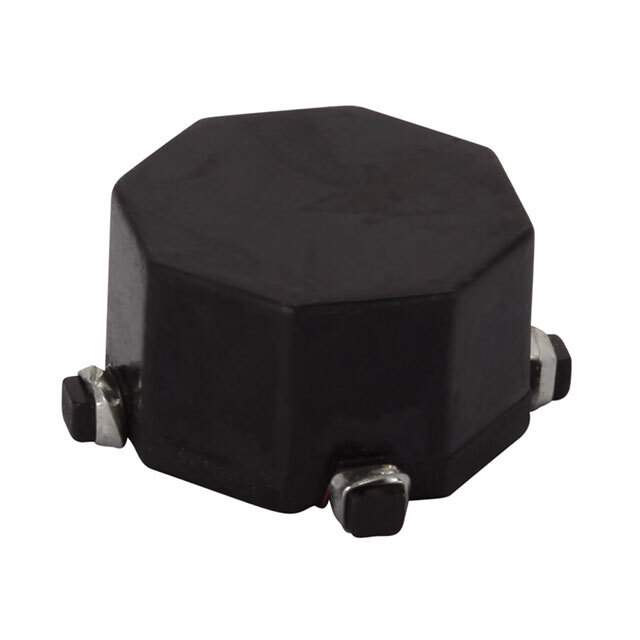

CTX100-2P-R

Part No CTX100-2P-R
Manufacturer Eaton Bussmann
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 99.14UH SMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton Bussmann
Packaging Reel - TR
Status Active
Number of Coils 2
Test Inductance - Connected In Series 396.58μH
Inductance - Connected In Parallel 99.14μH
Tolerance ±20%
Current Rating - Parallel 620mA
Current Rating - Series 310mA
DC Resistance (DCR) - Parallel 541 mOhm Max
DC Resistance (DCR) - Series 2.162 Ohm Max
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Height 0.235" (5.97mm)
Win Source Part Number 113584-CTX100-2P-R
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CTX100-2P-R CAD Model

Description

CTX100-2P-R: High-Performance Electronic Component

The CTX100-2P-R is a versatile and reliable electronic component ideal for various applications requiring precision and efficiency. This component is designed to meet the needs of modern electronics with exceptional durability and performance.

Applications

  • Power Supply Units (PSUs)
  • Telecommunication Equipment
  • Consumer Electronics
  • Industrial Automation Systems

Features and Benefits

  • High Efficiency: Optimized for minimal energy loss.
  • Compact Design: Space-saving, enabling more compact device designs.
  • Durability: Built to withstand rigorous operating conditions.

The CTX100-2P-R component, with its high efficiency and compact design, is perfect for projects focused on energy saving and reducing device size. Its robust construction ensures long-lasting performance even under heavy use.
