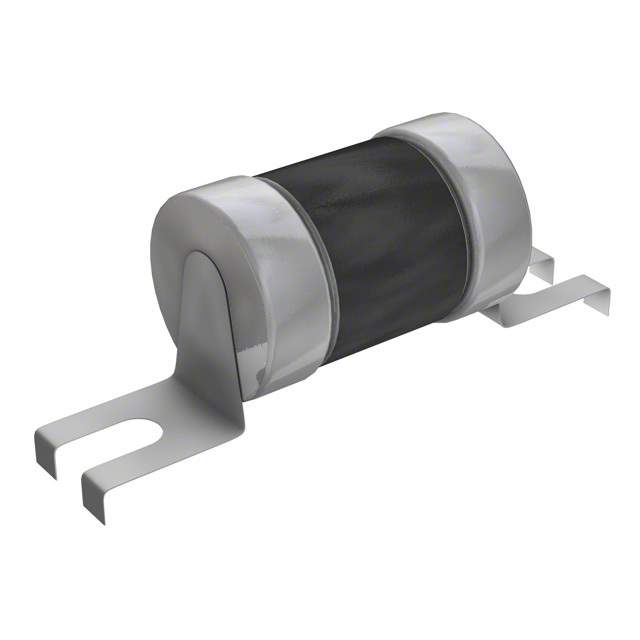

TPS-5L

Part No TPS-5L
Manufacturer Eaton Bussmann
Catalog Electrical, Specialty Fuses
Description DC power distribution non-indicating fuses | FUSE CARTRIDGE 5A 170VDC CYLINDR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Eaton - Bussmann Electrical Division
Packaging Bulk
Status Obsolete
Fuse Type Cartridge
Current Rating (Amps) 5A
Voltage Rating - DC 170V
Applications Telecom
Approvals CE, UR
Breaking Capacity at Rated Voltage 100kA
Mounting Style Bolt Mount
Manufacturer Package Cylindrical, Blade Terminal (Bolt)
Parts Dimension 0.563" Dia x 0.874" L (14.30mm x 22.20mm)
Manufacturer Pack Quantity 10
MSL Level 1 (Unlimited)
Win Source Part Number 1272686-TPS-5L
Manufacturer Homepage www.cooperbussmann.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TPS-5L CAD Model

Description

The Eaton - Bussmann Electrical Division fuse is a cartridge type fuse with a voltage rating of 170V DC and a current rating of 5A.

  • Voltage Rating: 170V DC
  • Current Rating: 5A
  • Shape: cylindrical shape
  • Terminals: blade terminals
  • Mounting Style: bolt mounting style
  • Approvals: CE and UR
  • Application: telecom applications
  • Breaking Capacity: 100kA @ rated voltage
  • Market Status: obsolete
  • Supply and Demand Status: limited
  • Manufacturer Package: 10 fuses per pack
  • Diameter: 0.563 inches
  • Length: 0.874 inches
