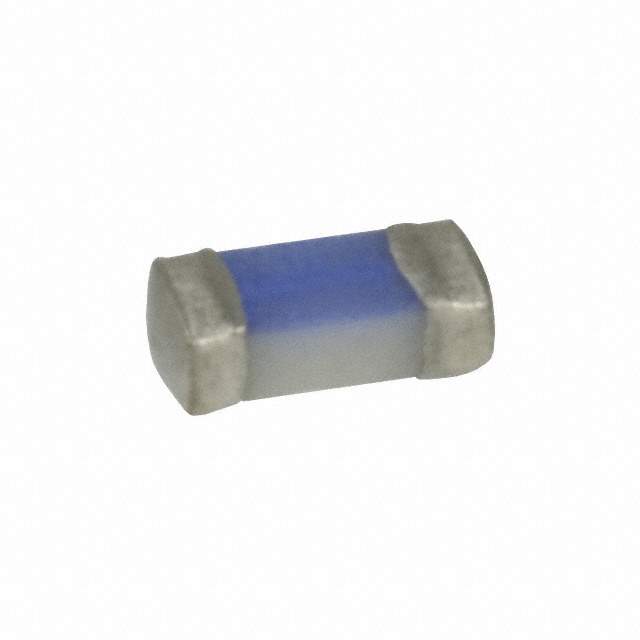

TR/0603FA4A Real Image
Same model may have multiple batches, images only for reference.

TR/0603FA4A

Part No TR/0603FA4A
Manufacturer Eaton Bussmann
Catalog Fuses
Description FUSE BOARD MOUNT 4A 24VDC 0603 / Fuse Chip Fast Acting 4A 24V SMD Solder Pad 0603 T/R CSA/UL
Datasheet
TR/0603FA4A Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Eaton
Series CHIP 0603FA
Packaging Reel package
Part Status Obsolete(EOL)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 4A
Voltage Rating - DC 24V
Response Time Fast
Package 0603
Mounting SMD
Breaking Capacity @ Rated Voltage 35A
Melting I2t 0.243
Approvals CSA, UL
Operating Temperature Range -55°C ~ 125°C
Dimension 0.063" L x 0.032" W x 0.019" H (1.60mm x 0.81mm x 0.48mm)
Resistance 0.017 Ohm
Win Source Part Number 798344-TR/0603FA4A
Popularity Medium
Supply and Demand Status Limited
Family Name 0603FA
Introduction Date September 04, 2001
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian TR/0603FA4A CAD Model

Description

The 0603FA4A chip fuse is manufactured by Eaton.

  • Current Rating: 4A
  • Voltage Rating: 24V DC
  • Response Time: Fast
  • Breaking Capacity: 35A @ Rated Voltage
  • Resistance: 0.017 Ohm
  • Melting I2t: 0.243
  • Approvals: CSA, UL
  • Mounting: SMD
  • Family Name: 0603FA
  • Dimensions: 0.063" L x 0.032" W x 0.019" H (1.60mm x 0.81mm x 0.48mm)
  • Packaging: Reel
  • Status: Obsolete/EOL
  • Estimated EOL Date: Unknown
  • Supply and Demand Status: Limited
