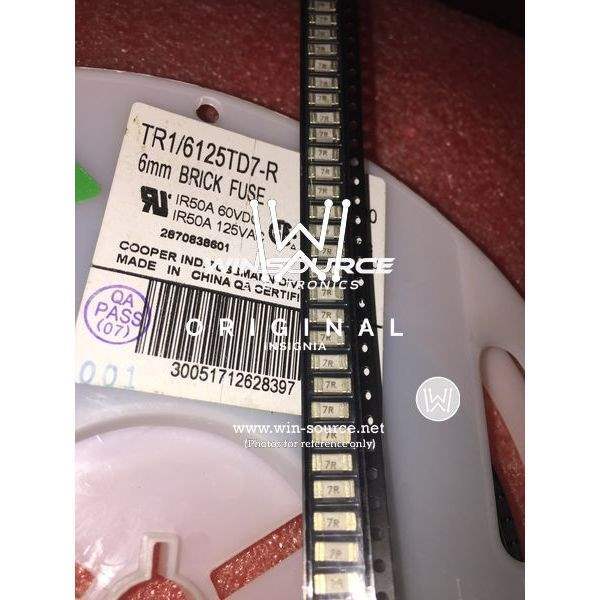

TR1/6125TD7-R Eaton Bussmann TR1/6125TD7-R Real Image TR1/6125TD7-R real image
Same model may have multiple batches, images only for reference.
TR1/6125TD7-R Eaton Bussmann TR1/6125TD7-R Real Image TR1/6125TD7-R real image
TR1/6125TD7-R Eaton Bussmann TR1/6125TD7-R Real Image TR1/6125TD7-R real image
Same model may have multiple batches, images only for reference.

TR1/6125TD7-R

Part No TR1/6125TD7-R
Manufacturer Eaton Bussmann
Catalog Fuses
Description Fuse Chip Slow Blow Acting 7A 125V SMD Solder Pad 2410 T/R CSA/UL / FUSE BRD MNT 7A 125VAC 60VDC SMD
Datasheet
TR1/6125TD7-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Eaton Bussmann
Packaging Reel - TR
Status Active
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 7A
Voltage Rating - AC 125V
Voltage Rating - DC 60V
Response Time Slow
Mounting SMD (SMT)
Breaking Capacity @ Rated Voltage 50A
Nominal Melting - I2t 90.2
Approvals CSA, UL
Nominal Cold Resistance 0.0087 Ohm
Win Source Part Number 048297-TR1/6125TD7-R
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name 6125TD
ECCN EAR99
Country of Origin China
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian TR1/6125TD7-R CAD Model

Description

The Eaton Bussmann 048297-TR1/6125TD7-R is a board mount type fuse, excluding cartridge style.

  • Current Rating: 7A
  • Voltage Rating: 125V AC/60V DC
  • Response Time: slow
  • Breaking Capacity: 50A
  • Circuit Protection: effective
  • Approvals: CSA and UL
  • Mounting: surface mount (SMD)
  • Nominal Melting - I2t: 90.2
  • Nominal Cold Resistance: 0.0087 Ohm
  • Supply and Demand Status: balanced
