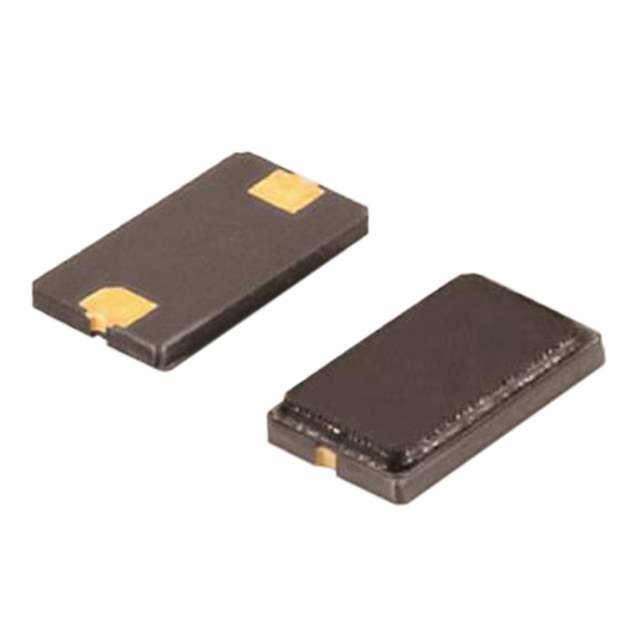

ECS-080-18-23G-JGN-TR Real Image
Same model may have multiple batches, images only for reference.

ECS-080-18-23G-JGN-TR

Part No ECS-080-18-23G-JGN-TR
Manufacturer ECS Inc.
Catalog Oscillators
Description CRYSTAL 8.0000MHZ 18PF SMD / 8 MHz ±20ppm Crystal 18pF 100 Ohms 2-SMD, No Lead
Datasheet
ECS-080-18-23G-JGN-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr ECS Inc.
Series ECS-23G
Package Tape & Reel
Type MHz Crystal
Frequency 8 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±20ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 100 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 2-SMD, No Lead
Dimension 0.236" L x 0.138" W (6.00mm x 3.50mm)
Height - Seated (Max) 0.055" (1.40mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0050
Other Names XC2340TR,XC2340DKR,XC2340CT
Standard Package 1,000
Win Source Part Number 965902-ECS-080-18-23G-JGN-TR
Ultra Librarian 3D Model Ultra Librarian ECS-080-18-23G-JGN-TR CAD Model

Description

The ECS-23G is a MHz crystal oscillator that provides a frequency of 8 MHz with a frequency stability of ±30ppm.

  • Frequency: 8 MHz
  • Frequency Stability: ±30ppm
  • ESR (Equivalent Series Resistance): 100 Ohms
  • Load Capacitance: 18pF
  • Operating Temperature: -40°C to 85°C
  • Packaging: Tape & Reel
  • Dimension: 0.236" L x 0.138" W (6.00mm x 3.50mm)
