Same model may have multiple batches, images only for reference.

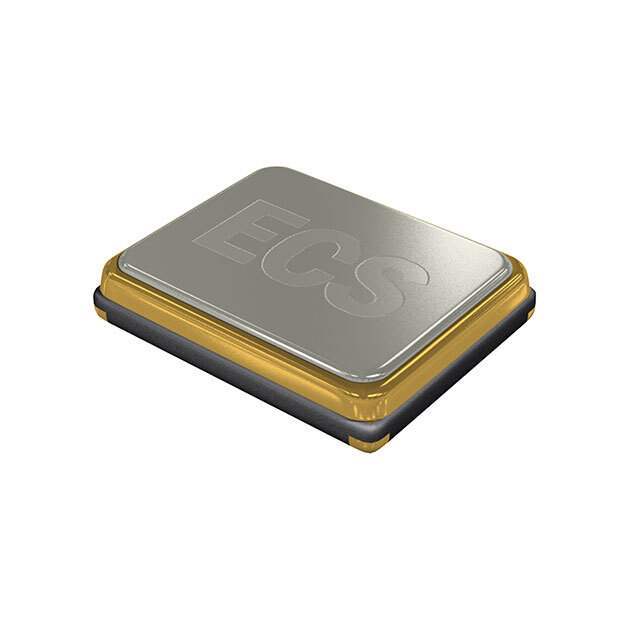

ECS-120-10-36Q-ES-TR ECS Inc.
Same model may have multiple batches, images only for reference.

ECS-120-10-36Q-ES-TR

Part No ECS-120-10-36Q-ES-TR
Manufacturer ECS Inc.
Catalog Crystals
Description CRYSTAL 12.0000MHZ 10PF SMD
Datasheet
ECS-120-10-36Q-ES-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1205762-ECS-120-10-36Q-ES-TR
Manufacturer ECS Inc.
Category Crystals, Oscillators, Resonators- Crystals
Series ECX-2236Q
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Type MHz Crystal
Frequency 12 MHz
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Ultra Librarian 3D Model Ultra Librarian ECS-120-10-36Q-ES-TR CAD Model

Description

• Low Profile
• 2.5 x 2.0 mm Footprint
• RoHS Compliant
• AEC-Q200 Qualified
