Same model may have multiple batches, images only for reference.

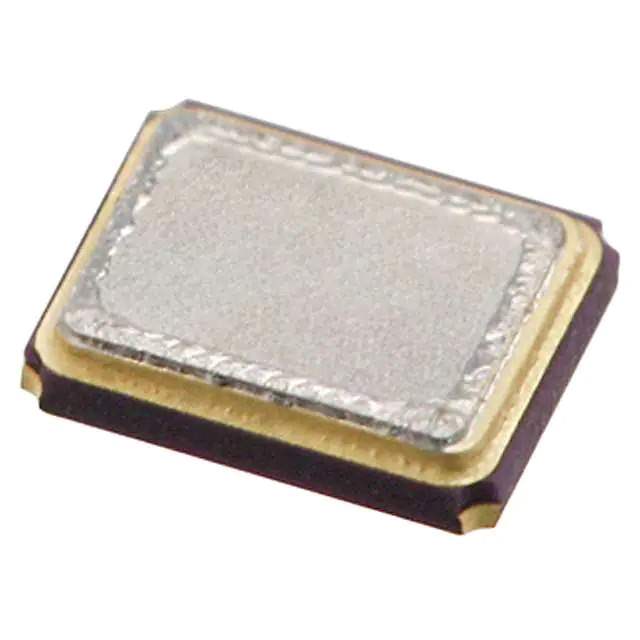

ECS-160-18-33Q-DS Real Image
Same model may have multiple batches, images only for reference.

ECS-160-18-33Q-DS

Part No ECS-160-18-33Q-DS
Manufacturer ECS Inc.
Catalog Oscillators
Description CRYSTAL 16.0000MHZ 18PF SMD / 16 MHz ±30ppm Crystal 18pF 80 Ohms 4-SMD, No Lead
Datasheet
ECS-160-18-33Q-DS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr ECS Inc.
Series ECX-33Q
Package Tape & Reel
Product Status Active
Type MHz Crystal
Frequency 16 MHz
Frequency Stability ±100ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 80 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 125°C
Ratings AEC-Q200
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.031" (0.80mm)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0050
Win Source Part Number 870072-ECS-160-18-33Q-DS
Ultra Librarian 3D Model Ultra Librarian ECS-160-18-33Q-DS CAD Model

Description

The ECX-33Q series from ECS Inc. offers a MHz crystal with a frequency of 16 MHz.

  • Manufacturer: ECS Inc.
  • Series: ECX-33Q
  • Frequency: 16 MHz
  • Load Capacitance: 18pF
  • Mode: Fundamental
  • Mounting: Surface Mountable
  • Package: 4-SMD, No Lead
  • Temperature Range: -40°C to 125°C
  • ESR: 80 Ohms
  • Frequency Stability: ±100ppm
  • Frequency Tolerance: ±30ppm
  • Category: Crystals, Oscillators, Resonators
  • Status: Active
