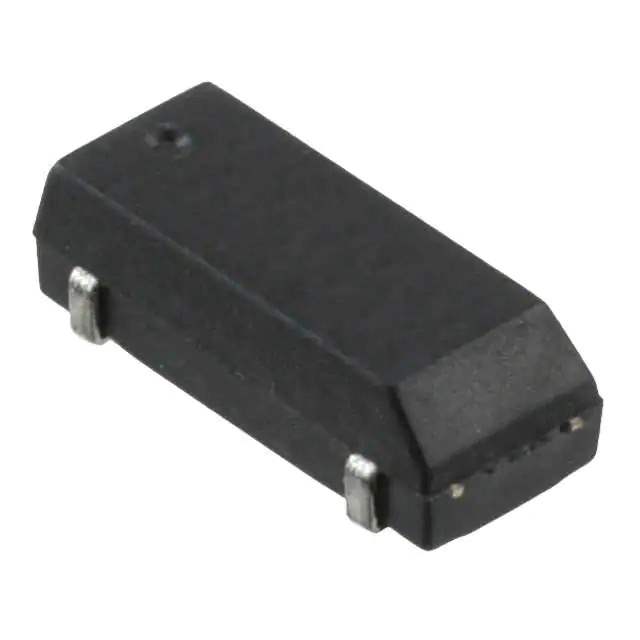

ECS-.327-12.5-17X-C-TR Real Image
Same model may have multiple batches, images only for reference.

ECS-.327-12.5-17X-C-TR

Part No ECS-.327-12.5-17X-C-TR
Manufacturer ECS Inc.
Catalog Oscillators
Description CRYSTAL 32.7680KHZ 12.5PF SMD
Datasheet
ECS-.327-12.5-17X-C-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr ECS Inc.
Series ECX-306X
Package Tape & Reel
Product Status Active
Type kHz Crystal (Tuning Fork)
Frequency 32.768 kHz
Frequency Tolerance ±10ppm
Load Capacitance 12.5pF
ESR (Equivalent Series Resistance) 50 kOhms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 4-SOJ, 5.50mm pitch
Size / Dimension 0.315" L x 0.150" W (8.00mm x 3.80mm)
Height - Seated (Max) 0.098" (2.50mm)
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0010
Win Source Part Number 852873-ECS-.327-12.5-17X-C-TR
Ultra Librarian 3D Model Ultra Librarian ECS-.327-12.5-17X-C-TR CAD Model

Description

The ECX-306X series kHz Crystal (Tuning Fork) is a high-quality electronic component manufactured by ECS Inc.

  • Application: Crystals, Oscillators, and Resonators
  • Frequency: 32.768 kHz
  • Load Capacitance: 12.5pF
  • Mode: Fundamental
  • Mounting Type: Surface Mountable
  • Package Size: 0.315" L x 0.150" W (8.00mm x 3.80mm)
  • Seated Height: 0.098" (2.50mm)
  • Packaging: Tape & Reel
  • Pitch: 5.50mm
  • Operating Temperature: -40°C to 85°C
  • Status: Active
