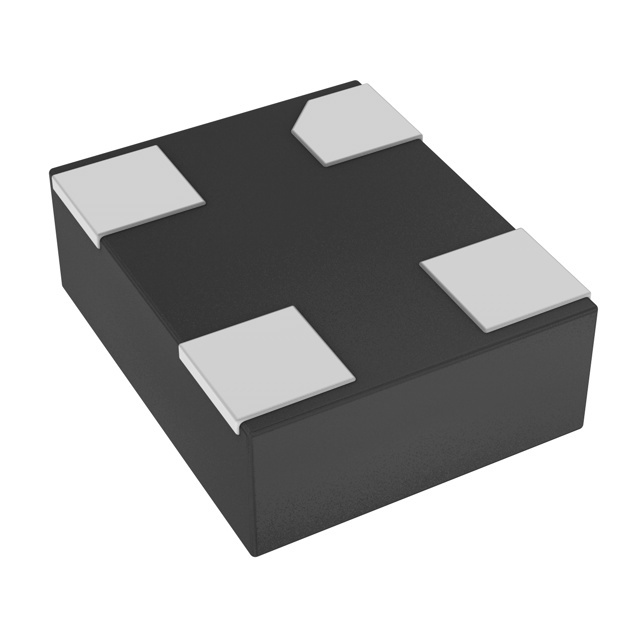

Same model may have multiple batches, images only for reference.
ECS-3953M-160-BN-TR ECS Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

ECS-3953M-160-BN-TR

Part No ECS-3953M-160-BN-TR
Manufacturer ECS Inc.
Catalog Oscillators
Description XTAL OSC XO 16.0000MHZ HCMOS SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Base Resonator Crystal
Type XO (Standard)
Frequency 16 MHz
Function Enable/Disable
Output HCMOS
Voltage - Supply 3.3V
Frequency Stability ±50ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 15mA
Mounting Type Surface Mount
Case / Package 4-SMD, No Lead
Supplier Device Package 4-SMD (7x5)
Size / Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) 0.067\
Package Tape & Reel
Supply and Demand Status Limited
Win Source Part Number 1529710-ECS-3953M-160-BN-TR
Ultra Librarian 3D Model Ultra Librarian ECS-3953M-160-BN-TR CAD Model
