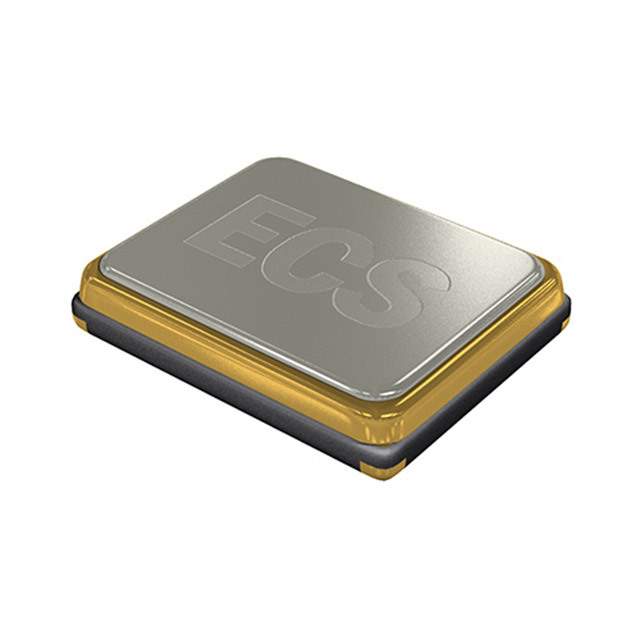

ECS-271.2-10-47Q-ES-TR Real Image
Same model may have multiple batches, images only for reference.

ECS-271.2-10-47Q-ES-TR

Part No ECS-271.2-10-47Q-ES-TR
Manufacturer ECS Inc.
Catalog Crystals
Description CRYSTAL 27.1200MHZ 10PF SMD / 27.12 MHz ±30ppm Crystal 10pF 100 Ohms 4-SMD, No Lead
Datasheet
ECS-271.2-10-47Q-ES-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr ECS Inc.
Series ECX-1247Q
Package Tape & Reel
Type MHz Crystal
Frequency 27.12 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 10pF
ESR (Equivalent Series Resistance) 100 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 125°C
Ratings AEC-Q200
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.063" L x 0.047" W (1.60mm x 1.20mm)
Height - Seated (Max) 0.016" (0.40mm)
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
Win Source Part Number 1349744-ECS-271.2-10-47Q-ES-TR
Ultra Librarian 3D Model Ultra Librarian ECS-271.2-10-47Q-ES-TR CAD Model

Description

The ECX-1247Q series MHz crystal is a high-quality crystal that comes in a 4-SMD, no lead package. Bold the product name (e.g., BAV99S,135 → BAV99S,"135") and manufacturer (e.g., Nexperia USA Inc. → Nexperia USA Inc.).

  • Package: 4-SMD, no lead
  • Frequency: 27.12 MHz
  • Frequency Stability: ±50ppm
  • Load Capacitance: 10pF
  • ESR (Equivalent Series Resistance): 100 Ohms
  • Temperature Range: -40°C to 125°C
  • AEC-Q200 Rated: Yes (suitable for automotive applications)
  • Dimension: 0.063" L x 0.047" W (1.60mm x 1.20mm)
  • Applications: Communications, networking, and test and measurement
