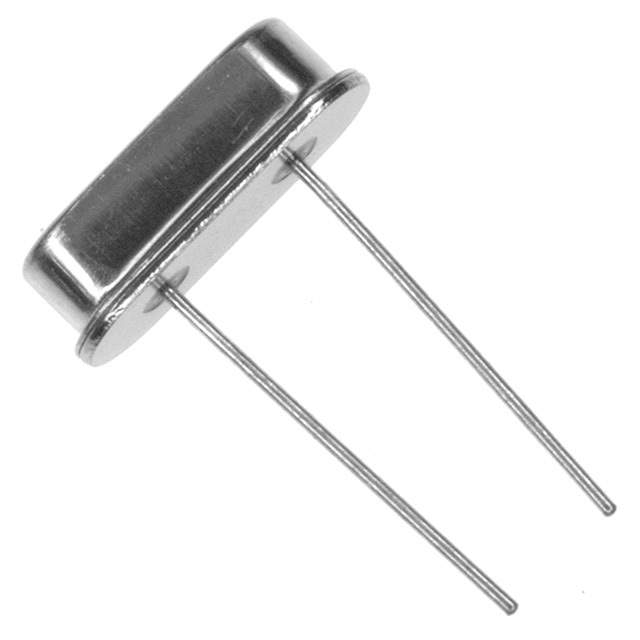

ECS-36-18-4X Real Image
Same model may have multiple batches, images only for reference.

ECS-36-18-4X

Part No ECS-36-18-4X
Manufacturer ECS Inc.
Catalog Oscillators
Description CRYSTAL 3.6864MHZ 18PF TH / 3.6864 MHz ±30ppm Crystal 18pF 200 Ohms HC-49/US
Datasheet
ECS-36-18-4X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Manufacturer ECS Inc.
Packaging Bulk
Type MHz Crystal
Frequency 3.6864 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 200 Ohms
Operating Mode Fundamental
Temperature Range - Operating -10°C ~ 70°C
Mounting Through Hole
Case / Package HC-49/US
Size / Dimension 0.447" L x 0.183" W (11.35mm x 4.65mm)
Height - Seated (Max) 0.138" (3.50mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0030
Other Part Number Q2519145G,X1042,ECS36184X
Standard Package 200
Win Source Part Number 1328347-ECS-36-18-4X
Ultra Librarian 3D Model Ultra Librarian ECS-36-18-4X CAD Model

Description

The ECS Inc. 1328347-ECS-36-18-4X is a through-hole MHz crystal from ECS Inc.

  • Package: HC-49/US
  • Length: 0.447 inches
  • Width: 0.183 inches
  • Seated Height: 0.138 inches (max)
  • Frequency: 3.6864 MHz
  • ESR: 200 Ohms
  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±30ppm
  • Load Capacitance: 18pF
  • Operating Mode: Fundamental
  • Packaging: Bulk
  • Temperature Range: -10°C to 70°C
  • REACH Affected: No
  • ECCN: EAR99
