Same model may have multiple batches, images only for reference.

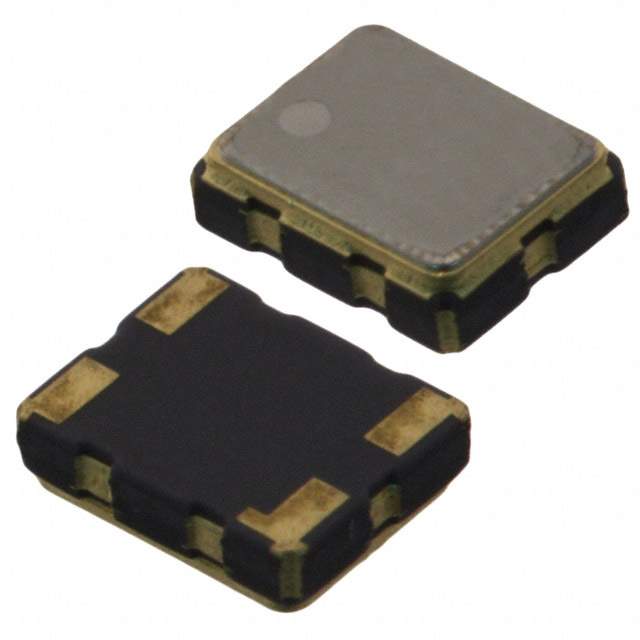

VC-TXO-23SM-260-B Real Image
Same model may have multiple batches, images only for reference.

VC-TXO-23SM-260-B

Part No VC-TXO-23SM-260-B
Manufacturer ECS Inc.
Catalog Oscillators
Description OSC VCTCXO 26.000MHZ SNWV SMD
Datasheet
VC-TXO-23SM-260-B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer ECS Inc.
Packaging Reel - TR
Status Active
Type VCTCXO
Frequency 26MHz
Output Clipped Sine Wave
Supply Voltage - Operating 3V
Frequency Stability ±2.5ppm
Temperature Range - Operating -30°C to 75°C
Current - Supply (Max) 1.5mA
Mounting SMD (SMT)
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.039" (1.00mm)
Win Source Part Number 106162-VC-TXO-23SM-260-B
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian VC-TXO-23SM-260-B CAD Model

Description

The ECS Inc. 106162-VC-TXO-23SM-260-B is a VCTCXO (Voltage Controlled Temperature Compensated Crystal Oscillator) that provides a frequency of 26MHz with a frequency stability of ±2.5ppm.

  • GPTDescription: This oscillator has a clipped sine wave output and operates on a supply voltage of 3V.
  • GPTDescription: The ECS Inc. 106162-VC-TXO-23SM-260-B is packaged in a reel - TR package and has a temperature range of -30°C to 75°C.
  • GPTDescription: With a dimension of 0.126" L x 0.098" W (3.20mm x 2.50mm), this oscillator is ideal for use in various applications such as GPS devices, wireless communication, and other digital circuits.
