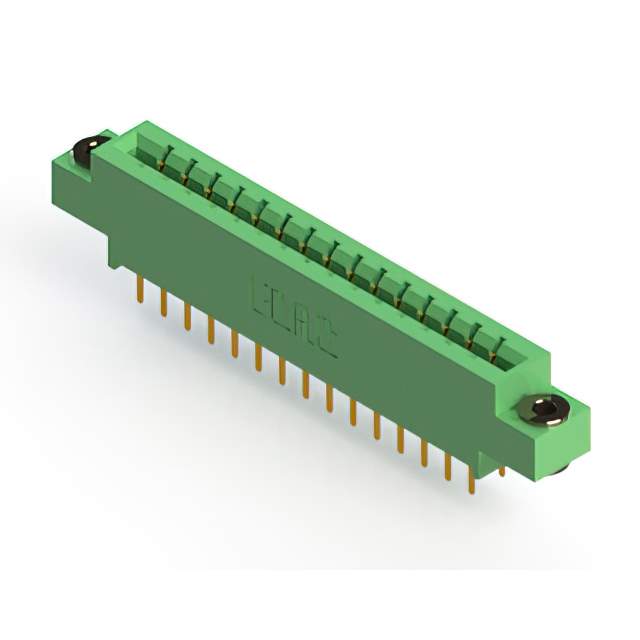

This card edge connector falls under the category of connectors, interconnects and has a Win Source part number of 1033868-333-030-520-803. The series is 333, and it has 30 positions with a pitch of 0.156 inches (3.96mm).

• Color: Green
• Contact Type: Cantilever
• Number of Rows: 2
• Termination: Solder
• Contact Finish: Gold
• Contact Finish Thickness: 10.0 µin (0.25 µm)
• Package: Box
• Contact Material: Copper Alloy
• Insulation Material: Polyester Thermoplastic
• Gender: Female
• Standard Package: 25
• Card Type: Non-specified - Dual Edge
• Number of Positions/Bay/Row: 15
• Card Thickness: 0.054 inches ~ 0.070 inches (1.37mm ~ 1.78mm)
• Flange Feature: Top Mount Opening, Floating Bobbin, 0.116 inches (2.95mm) dia
• Readout: Dual
• Mounting Type: Through-Hole
• Temperature Range for Operating: -40°C to 105°C
• Mfr: EDAC Inc.
• Other Names: 151-333-030-520-803
