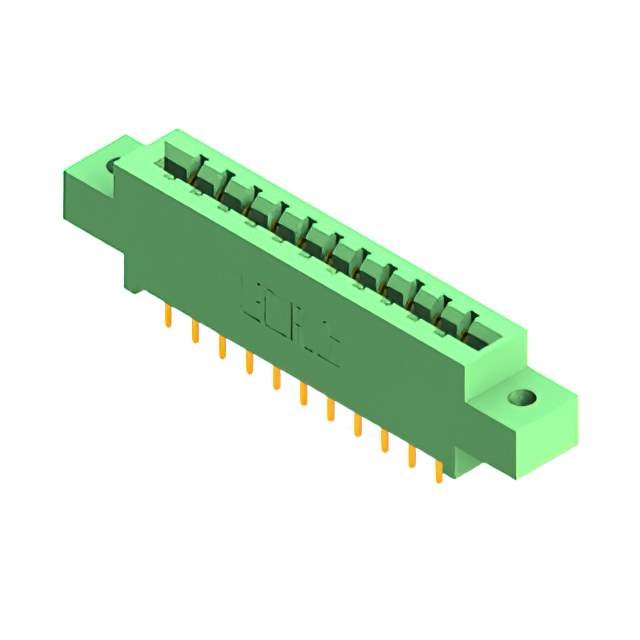

337-022-521-802 Real Image
Same model may have multiple batches, images only for reference.

337-022-521-802

Part No 337-022-521-802
Manufacturer EDAC Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Description 337 SERIES (.156" (3.96MM) CONTA / 22 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
Datasheet
337-022-521-802 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr EDAC Inc.
Series 337
Package Box
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions/Bay/Row 11
Number of Positions 22
Card Thickness 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows 2
Pitch 0.156" (3.96mm)
Read Out Dual
Mounting Type Through Hole
Termination Solder
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Contact Type Cantilever
Color Green
Flange Feature Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia
Temperature Range - Operating -40°C ~ 105°C
Material - Insulation Polyester Thermoplastic
Termination Rows 2
Base Product Number 337-022
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 151-337-022-521-802
Standard Package 25
Win Source Part Number 1034999-337-022-521-802
Ultra Librarian 3D Model Ultra Librarian 337-022-521-802 CAD Model

Description

This is a female cantilever card edge connector from the 337 series with 22 positions and a pitch of 0.156 inches.

  • Color: Green
  • Termination: Solder
  • Contact Finish: Gold
  • Thickness: 10.0µin (0.25µm)
  • Contact Material: Copper Alloy
  • Insulation Material: Polyester Thermoplastic
  • Card Type: Non-specified Dual Edge
  • Positions/Bay/Row: 11
  • Thickness: 0.054 inches to 0.070 inches
  • Flange Feature: Top Mount Opening, Unthreaded, and 0.128 inches (3.25mm) Diameter
  • Readout: Dual
  • Mounting Type: Through Hole
  • Temperature Range: -40°C to 105°C
  • Package: Box
  • Standard Package: 25
