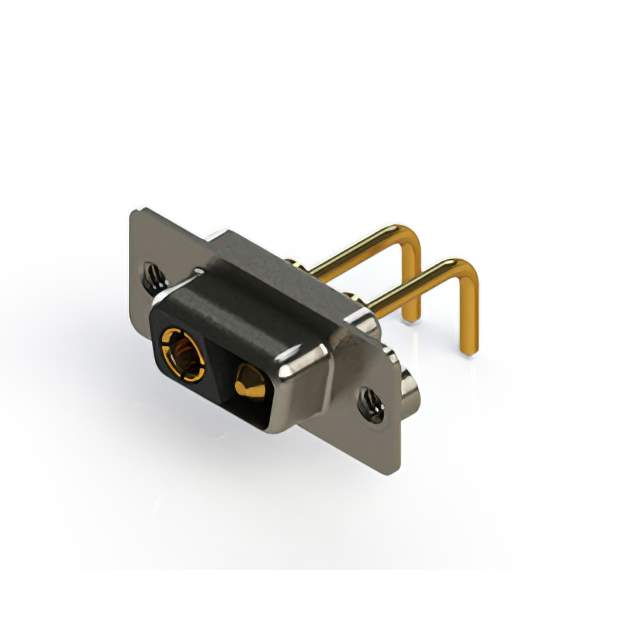

630-2WK2650-1NA Real Image
Same model may have multiple batches, images only for reference.

630-2WK2650-1NA

Part No 630-2WK2650-1NA
Manufacturer EDAC Inc.
Catalog D - Sub Connectors
Description 630 SERIES RIGHT ANGLE COMBO' D- / 2 (Power) Position D-Sub, Combo Receptacle, Female Sockets and Male Pins Connector
Datasheet
630-2WK2650-1NA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr EDAC Inc.
Series 630-C
Package Tray
Connector Style D-Sub, Combo
Connector Type Receptacle, Female Sockets and Male Pins
Number of Positions 2 (Power)
Number of Rows 1
Mounting Type Through Hole, Right Angle
Shell Size, Connector Layout 1 (DE, E) - 2V2, 2W2, 2W2C, 2WK2
Contact Type Power
Flange Feature Board Side (M3)
Termination Solder
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 10A
Backset Spacing 0.520" (13.20mm)
Voltage Rating 125V
Color Black
Dielectric Material Polyester Thermoplastic
Contact Material Copper Alloy
Temperature Range - Operating -55°C ~ 125°C
Base Product Number 630-2WK
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 151-630-2WK2650-1NA
Standard Package 250
Win Source Part Number 1182981-630-2WK2650-1NA
Ultra Librarian 3D Model Ultra Librarian 630-2WK2650-1NA CAD Model

Description

The 1182981-630-2WK2650-1NA connector from EDAC Inc. is a D-Sub connector that has 2 (power) number of positions. It has a voltage rating of 125V and a current rating of 10A. This connector is designed for through-hole, right angle mounting and has a temperature range of -55°C ~ 125°C. It has a contact finish of gold and a contact finish thickness of 30.0µin (0.76µm). The shell material is made of steel and is nickel plated. It has a flange feature of board side (M3) and a backset spacing of 0.520" (13.20mm). The connector is packaged in a tray and has a standard package of 250.
