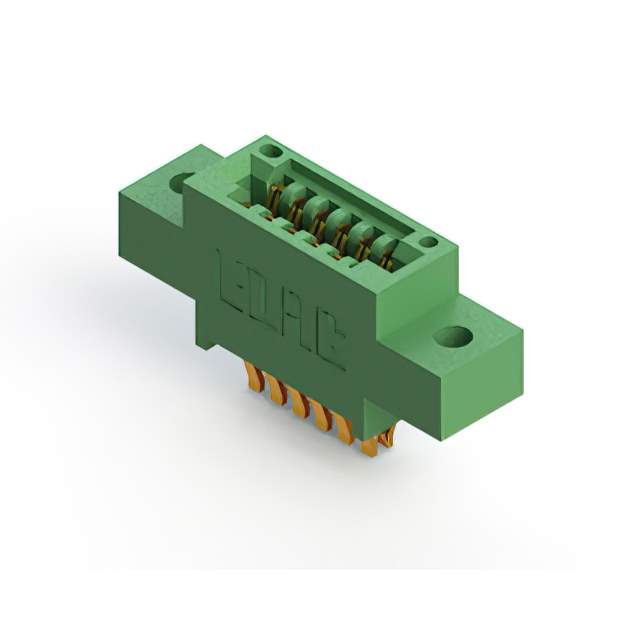

845-012-560-802 Real Image
Same model may have multiple batches, images only for reference.

845-012-560-802

Part No 845-012-560-802
Manufacturer EDAC Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE DUAL FMALE 12POS 0.100 / 12 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
Datasheet
845-012-560-802 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr EDAC Inc.
Series 845
Package Box
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions/Bay/Row 6
Number of Positions 12
Card Thickness 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows 2
Pitch 0.100" (2.54mm)
Read Out Dual
Features Card Extender
Mounting Type Board Edge, Straddle Mount
Termination Solder
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Contact Type Cantilever
Color Green
Flange Feature Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia
Temperature Range - Operating -40°C ~ 125°C
Material - Insulation Diallyl Phthalate (DAP)
Termination Rows 2
Base Product Number 845-012
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 151-845-012-560-802
Standard Package 25
Win Source Part Number 1041173-845-012-560-802
Ultra Librarian 3D Model Ultra Librarian 845-012-560-802 CAD Model

Description

The 845-012-560-802 card edge connector is part of the 845 series of edgeboard connectors.

  • Positions: 12
  • Rows: Two
  • Pitch: 0.100" (2.54mm)
  • Connector Type: Female
  • Contact Type: Cantilever
  • Package: Box
  • Standard Package: 25
  • Card Thickness: 0.054" to 0.070" (1.37mm to 1.78mm) Non-Specified Dual-Edge
  • Flange Feature: Top Mount Opening, Unthreaded, 0.128" (3.25mm) Diameter
  • Operating Temperature Range: -40°C to 125°C
  • Manufacturer: EDAC Inc.
