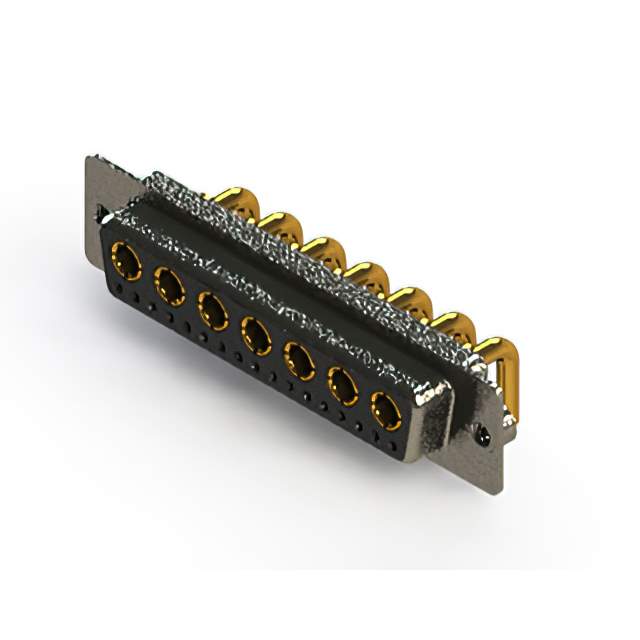

630-24W7240-2T2 Real Image
Same model may have multiple batches, images only for reference.

630-24W7240-2T2

Part No 630-24W7240-2T2
Manufacturer EDAC Inc.
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB RCPT 24POS R/A SLDR / 24 (17 + 7 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
Datasheet
630-24W7240-2T2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr EDAC Inc.
Series 630-C
Package Tray
Connector Style D-Sub, Combo
Connector Type Receptacle, Female Sockets
Number of Positions 24 (17 + 7 Power)
Number of Rows 2
Mounting Type Through Hole, Right Angle
Shell Size, Connector Layout 5 (DD, D) - 24W7
Contact Type Signal and Power
Flange Feature Housing/Shell (4-40)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 5A, 20A
Backset Spacing 0.370" (9.40mm)
Voltage Rating 125V
Color Black
Dielectric Material Polyester Thermoplastic
Contact Material Copper Alloy
Temperature Range - Operating -55°C ~ 125°C
Base Product Number 630-24W
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1341507-630-24W7240-2T2
Ultra Librarian 3D Model Ultra Librarian 630-24W7240-2T2 CAD Model

Description

The 630-24W7240-2T2 is a D-sub connector assembly from EDAC Inc. It has a 24-position (17 + 7 power) configuration and a black color.

  • Connector Type: Receptacle, Female Sockets
  • Contact Type: Signal and Power
  • Series: 630-C
  • Connector Style: Combo D-Sub
  • Number of Rows: 2
  • Termination: Solder
  • Contact Finish: Gold with a flash thickness
  • Voltage Rating: 125V
  • Current Rating: 5A and 20A
  • Shell Material: Steel with a tin plating finish
  • Operating Temperature: -55°C to 125°C
  • Backset Spacing: 0.370" (9.40mm)
  • Flange Feature: Housing/Shell (4-40)
  • Shell Size/Connector Layout: 5 (DD, D) - 24W7
  • Packaging: Tray
  • Mounting Technology: Through-Hole, Right-Angle
