Same model may have multiple batches, images only for reference.

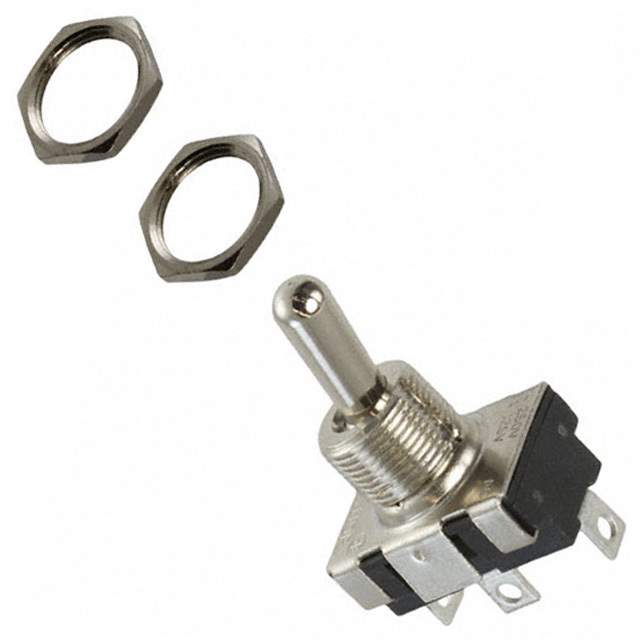

7101D Real Image
Same model may have multiple batches, images only for reference.

7101D

Part No 7101D
Manufacturer Electroswitch
Catalog Toggle Switches
Description SWITCH TOGGLE SPDT 6A 125V  /  Toggle Switch SPDT Panel Mount
Datasheet
7101D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Toggle Switches
Mfr Electroswitch
Series 7100
Package Bulk
Mounting Type Panel Mount
Circuit SPDT
Switch Function On-On
Current Rating (Amps) 6A (AC)
Voltage Rating - AC 125 V
Actuator Type Standard Round
Actuator Length 14.27mm
Illumination Non-Illuminated
Termination Style Solder Lug
Bushing Thread 15/32-32
Temperature Range - Operating -10°C ~ 65°C
Electrical Life 10,000 Cycles
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.50.9065
Other Names 451-1161
Standard Package 1
Win Source Part Number 1156113-7101D
Ultra Librarian 3D Model Ultra Librarian 7101D CAD Model

Description

The 7101D is a high-quality toggle switch manufactured by Electroswitch.

  • Circuit: single pole double throw (SPDT)
  • Current Rating: 6A (AC)
  • Electrical Life: 10,000 cycles
