Same model may have multiple batches, images only for reference.

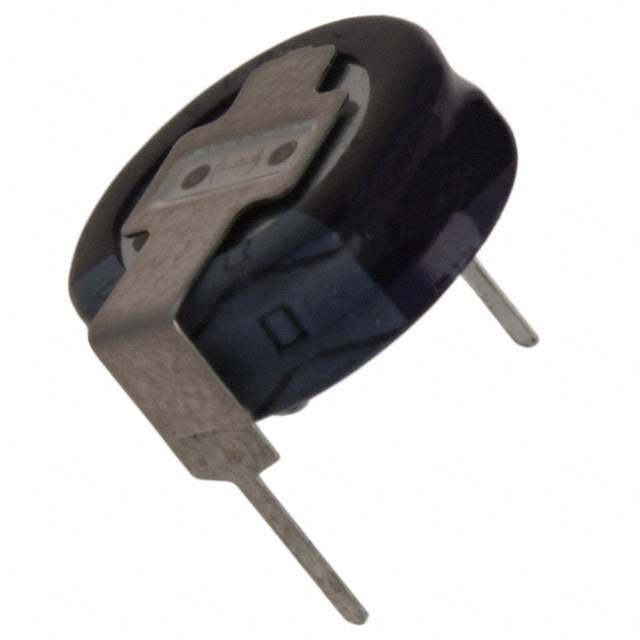

RSCX13345R5F05013U Real Image
Same model may have multiple batches, images only for reference.

RSCX13345R5F05013U

Part No RSCX13345R5F05013U
Manufacturer Elna America
Catalog Electric Double Layer Capacitors, Supercaps
Description CAP 330MF -20% +80% 5.5V T/H / 330 mF (EDLC) Supercapacitor 5.5 V Axial, Can - Horizontal 75Ohm 1000 Hrs @ 70°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Electric Double Layer Capacitors (EDLC), Supercapacitors
Mfr Elna America
Series DX
Package Bulk
Capacitance 330 mF
Tolerance -20%, +80%
Voltage - Rated 5.5 V
ESR (Equivalent Series Resistance) 75Ohm
Lifetime @ Temp. 1000 Hrs @ 70°C
Termination PC Pins
Mounting Type Through Hole
Package / Case Axial, Can - Horizontal
Lead Spacing 0.394" (10.00mm)
Size / Dimension 0.453" Dia (11.50mm)
Height - Seated (Max) 0.197" (5.00mm)
Temperature Range - Operating -25°C ~ 70°C
Standard Package 200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.29.0040
Win Source Part Number 1351771-RSCX13345R5F05013U
Ultra Librarian 3D Model Ultra Librarian RSCX13345R5F05013U CAD Model

Description

The Elna America DX series capacitor is an electric double-layer capacitor (EDLC) or supercapacitor.

  • Series: DX
  • Capacitance: 330mF
  • Voltage - Rated: 5.5V
  • Tolerance: -20%, +80%
  • Lead Spacing: 0.394" (10.00mm)
  • ESR (Equivalent Series Resistance): 75Ohm
  • Lifetime @ Temp.: 1000 Hrs @ 70°C
  • Mounting Type: Through Hole
  • Package / Case: Axial, Can - Horizontal
  • Operating Temperature: -25°C ~ 70°C
  • Application: Industrial, Consumer Electronics, Portable Devices, and Power Management
