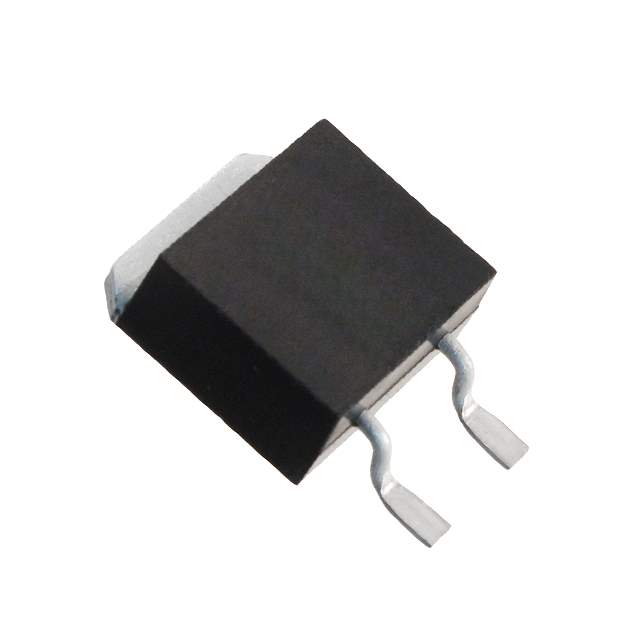

PWR263S-35-7R50J Real Image
Same model may have multiple batches, images only for reference.

PWR263S-35-7R50J

Part No PWR263S-35-7R50J
Manufacturer Bourns Inc.
Catalog Chip Resistor - Surface Mount
Description RES SMD 7.5 OHM 5% 35W D2PAK / 7.5 Ohms ±5% 35W Chip Resistor TO-263-3, D²Pak (2 Leads + Tab), TO-263AB Automotive AEC-Q200, Current Sense, Pulse Withstanding Thick Film
Datasheet
PWR263S-35-7R50J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Bourns Inc.
Series PWR263S-35
Package Tube
Resistance 7.5 Ohms
Tolerance ±5%
Power (Watts) 35W
Composition Thick Film
Features Automotive AEC-Q200, Current Sense, Pulse Withstanding
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case TO-263-3, D²Pak (2 Leads + Tab) , TO-263AB
Supplier Device Package D2PAK
Ratings AEC-Q200
Size / Dimension 0.398" L x 0.409" W (10.10mm x 10.40mm)
Height - Seated (Max) 0.177" (4.50mm)
Number of Terminations 2
Base Product Number PWR263S
Standard Package 50
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.29.0000
California Prop 65 Warning Information
Win Source Part Number 1351530-PWR263S-35-7R50J
Ultra Librarian 3D Model Ultra Librarian PWR263S-35-7R50J CAD Model

Description

The Bourns Inc. PWR263S-35 series chip resistor is a surface-mount component.

  • Package: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
  • Standard Package: 50
  • Resistance: 7.5 ohms
  • Tolerance: ±5%
  • Temperature Coefficient: ±100ppm/°C
  • Power Rating: 35W
  • Composition: Thick Film
  • Terminations: 2
  • AEC-Q200: Rated
  • Size: 0.398" L x 0.409" W (10.10mm x 10.40mm)
  • Height Seated (Max): 0.177" (4.50mm)
  • Temperature Range: -55°C to 155°C
